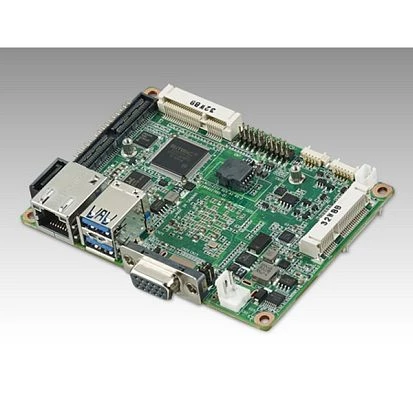

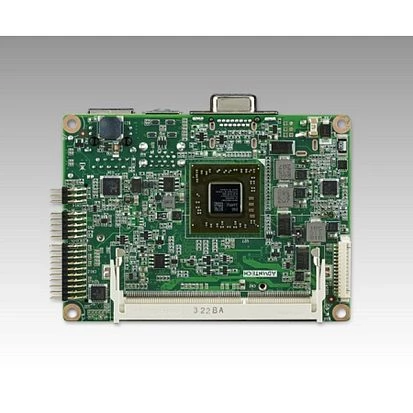

MIO-2270QH-S5A1E
Advantech
SKU: 07509800
AMD G-Series SoC GX-210JA 1GHz Pico-ITX SBC, DDR3, 18bit LVDS, VGA, 1GbE, Half-size Mini PCIe, 2xUSB 3.0, 2xUSB 2.0, 2 COM, SMBus, mSATA, MIOe, HD Audio
Price on request
Available on order
Available on order
System Architecture
Form Factor
PICO-ITX
Construction
Type
Fanless
CPU
Processor Installed
AMD G-Series GX-415GA
Socket
CPU onboard
Max CPU frequency
1.5 GHz
Memory
Form-factor
DDR3, DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, HDMI
Ethernet
Controller Type
Realtek RTL8111E PCIe GbE
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC888
Drive interfaces
mSATA
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB15 VGA, RJ45 Ethernet, 2xUSB
Dimensions and weight
Width
72 mm
Length
100 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.4 kg
Gross Weight
0.6 kg
