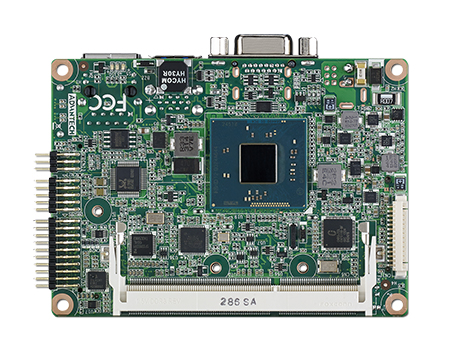

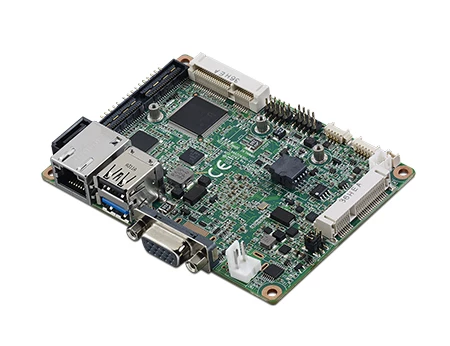

MIO-2263E-S3A2
Advantech
SKU: 11025400
Pico-ITX SBC, Intel Atom E3825 1.33GHz CPU, Up to 8GB DDR3L RAM, 18/24-bit LVDS, VGA, 1xGbE LAN, 1xUSB 3.0, 1xUSB 2.0, 2xUSB Int., 2xCOM Int., 8-bit GPIO, SMBus, SATA2, Half-Size MiniPCIe, Half-Size mSATA, MIOe, 12VDC-in
Price on request
Available
Available
System Architecture
Form Factor
PICO-ITX
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Atom E3825
Socket
FCBGA1170
Max CPU frequency
1.33 GHz
Chipset
Chipset
Intel Atom SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, VGA
Ethernet
Controller Type
Intel i210
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
3
USB v3.x
1
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC888
Drive interfaces
SATA 2
1
mSATA
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
2xCOM, 2xUSB 2.0, GPIO
Connectors

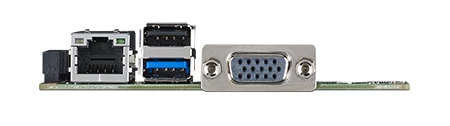

DB15 VGA, RJ45 Ethernet, 2xUSB, DC Input
Dimensions and weight
Width
100 mm
Length
72 mm
Operating Conditions
Operating Temperature
0..60 °C
Humidity
0-95%
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.35 kg
Gross Weight
0.46 kg
