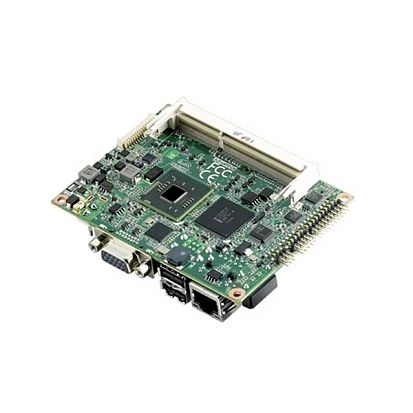

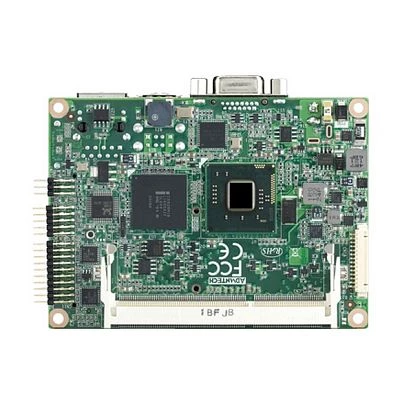

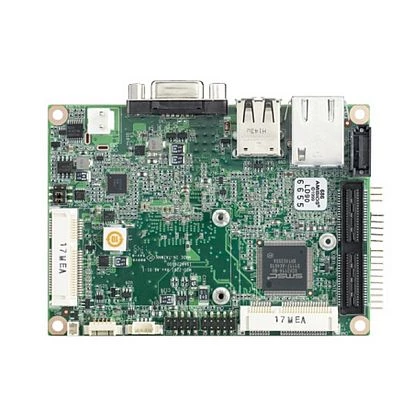

MIO-2261N-S8A1E
Advantech
SKU: 07426600
Intel Atom SoC Intel Atom N2800 1.86GHz Pico-ITX SBC, DDR3, 18/24-bit LVDS, VGA, 1GbE, Half-size Mini PCIe, 4xUSB, 2 COM, SMBus, mSATA, MIOe
Price on request
Available
Available
System Architecture
Form Factor
PICO-ITX
Construction
Type
Fanless
CPU
Processor Installed
Intel Atom N2800
Socket
CPU onboard
Max CPU frequency
1.86 GHz
Number of CPU
1
Chipset
Chipset
Intel NM10
Memory
Form-factor
DDR3
Socket Type
1xSODIMM
Maximum Memory
4 GB
Assembly
Removable
Graphic
Graphic Controller
Intel GMA 3600
Interfaces
LVDS, VGA
Ethernet
Controller Type
Intel 82583V 10/100/1000 Mbps
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
2
USB Total
2
USB 2.0
2
Audio
Audio Controller
Realtek ALC892
Drive interfaces
mSATA
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB15 VGA, RJ45 Ethernet, 2xUSB, DC Input
Dimensions and weight
Width
72 mm
Length
100 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
0.46 kg
Gross Weight
0.56 kg
