MARS400-T10-05
NEXCOM
SKU: 80248700

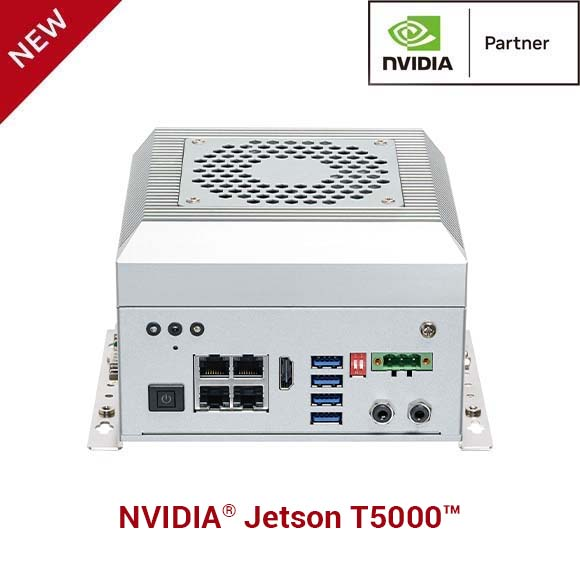

Embedded AI Robotic Control System, NVIDIA Jetson T5000 14-Core 2.6GHz SoM, Blackwell 2560-Core GPU, 128GB LPDDR5x RAM, HDMI, 4xGbE LAN, 4xUSB 3.2, 8xGMSL2, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, 24-48VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fan
CPU
Processor Installed
Nvidia Jetson T5000
Socket
CPU onboard
Max CPU frequency
2.6 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
Yes
Default on Board Memory
128 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Blackwell, 2560-cores, 96 Tensor Cores
Interfaces
HDMI
Ethernet
Total Ethernet
4
10/100/1000 Mbit/s
4
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
USB Total
4
USB v3.x
4
Drive interfaces
M.2
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
3042 M, 2280 M, 2230 E, 3052 B
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off
Connectors
Connectors
HDMI, 4xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC input (terminal block)
System Power Input
Input Voltage DC
24..48 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS
Dimensions and weight
Width
172.6 mm
Height
99.5 mm
Depth
145 mm
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A, EN61000-6-2, EN61000-6-4
Dimensions
Net Weight
2.2 kg
Gross Weight
3 kg
