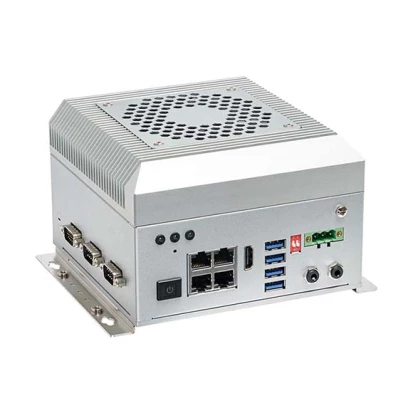

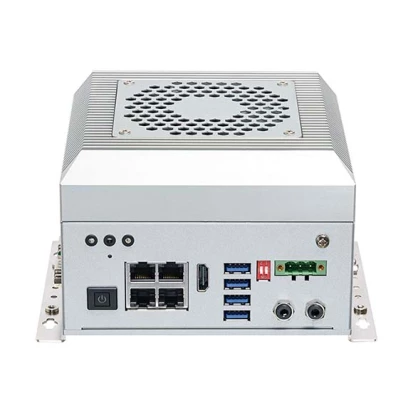

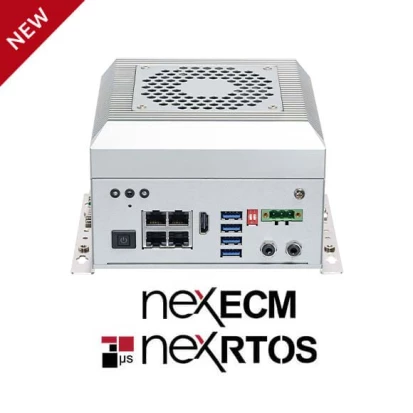

ECM-M400-N00-02-512-X
NEXCOM
SKU: 80265400
EtherCAT Master Controller, NVIDIA Jetson Orin NX 6-Core 2.0GHz SoM, Ampere 1024-Core GPU, 16GB LPDDR5 RAM, 512GB NVME SSD, HDMI, 5xGbE LAN, 5xUSB 3.2, 4xCOM, 2xCAN, 16-bit GPIO, 1xM.2 Key-B, 1xM.2 Key-E, 24-48VDC-in, NexRTOS with NexECM
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fan
CPU
Processor Installed
Nvidia Jetson Orin NX (8-Core)
Socket
CPU onboard
Max CPU frequency
2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
16 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 1024-cores, 32 Tensor Cores
Interfaces
HDMI
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
5
USB v3.x
5
Industrial Interfaces
CAN Port
2
Drive interfaces
M.2
1
Extension Slots
Total
3
M.2
3
M.2 Form Factor
3042 M, 2280 M, 2230 E, 3052 B
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off
Connectors
Connectors
4xDB9, HDMI, 5xRJ45 Ethernet, 4xUSB, DC input (terminal block), 26-pin GPIO, USB type C
System Power Input
Input Voltage DC
24..48 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS
Dimensions and weight
Width
204 mm
Height
105 mm
Depth
190 mm
Operating Conditions
Operating Temperature
-5..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A, EN61000-6-2, EN61000-6-4
Dimensions
Net Weight
2.2 kg
Gross Weight
3 kg
