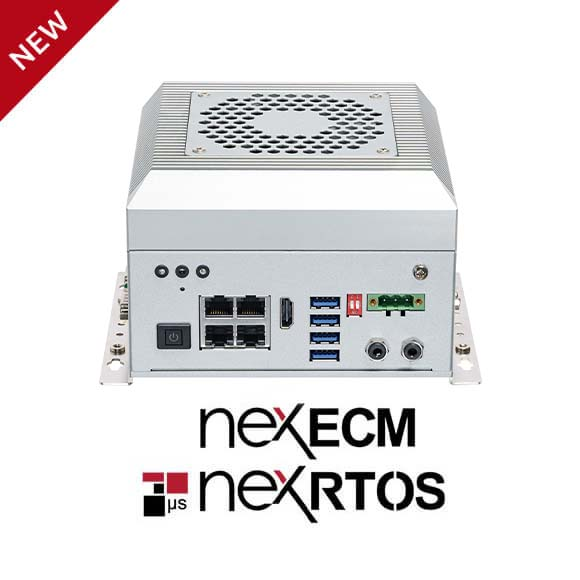

ECM-M400-N02-01-512-X
NEXCOM
SKU: 80265600
EtherCAT Master Controller, NVIDIA Jetson Orin Nano 6-Core 1.5GHz SoM, Ampere 1024-Core GPU, 8GB LPDDR5 RAM, 512GB NVME SSD, HDMI, 5xGbE LAN, 5xUSB 3.2, 4xCOM, 2xCAN, 16-bit GPIO, 1xM.2 Key-B, 1xM.2 Key-E, 24-48VDC-in, NexRTOS with NexECM
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fan
CPU
Processor Installed
Nvidia Jetson Orin Nano Super (8-Core)
Socket
CPU onboard
Max CPU frequency
2.2 GHz
Chipset
Chipset
SoC
Memory
Form-factor
DDR5
Socket Type
Soldered
ECC
No
Default on Board Memory
8 GB
Assembly
Fixed on Board
Graphic
Graphic Controller
NVIDIA Ampere, 1024-cores, 32 Tensor Cores
Interfaces
HDMI
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
Wi-Fi
Wi-Fi Standard
Yes (Optional)
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
5
USB v3.x
5
Industrial Interfaces
CAN Port
2
Drive interfaces
M.2
1
Installed drive
Drive Type
SSD
Storage Form-Factor
M.2
Drive Interface
PCIe x4
1st Storage Capacity
512 GB
Extension Slots
Total
3
M.2
3
M.2 Form Factor
3042 M, 2280 M, 2230 E, 3052 B
Antenna characteristics
Cellular interfaces
4G (Optional)
LED / Controls
LED
Power LED, SSD LED
Controls
On/Off
Connectors
Connectors
4xDB9, HDMI, 5xRJ45 Ethernet, 5xUSB, DC input (terminal block), 26-pin GPIO
System Power Input
Input Voltage DC
24..48 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS
Dimensions and weight
Width
204 mm
Height
105 mm
Depth
190 mm
Operating Conditions
Operating Temperature
-5..50 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE, FCC Class A, EN61000-6-2, EN61000-6-4
Dimensions
Net Weight
2.2 kg
Gross Weight
3 kg
