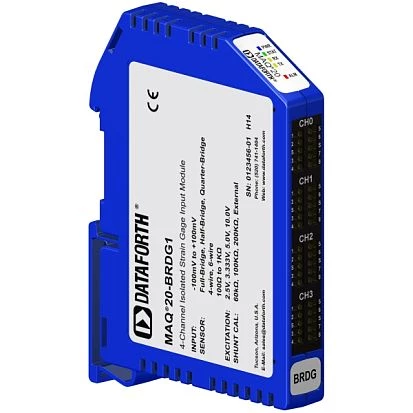

MAQ20-BRDG1

MAQ20-BRDG1

Dataforth
SKU: 06824600
Analog Input Module; Bridge/Strain Gage, 4-ch
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Analog Input
Total channels of analog input
4
Load Cell
4 wire Full Bridge, 6 wire Full Bridge, Half Bridge, Quarter Bridge
Dimensions and weight
Width
15.3 mm
Depth
82.8 mm
Height
114.6 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
CE
Oil And Gas
Class I Div.2 Groups A, B, C, D
Dimensions
Gross Weight
0.5 kg
