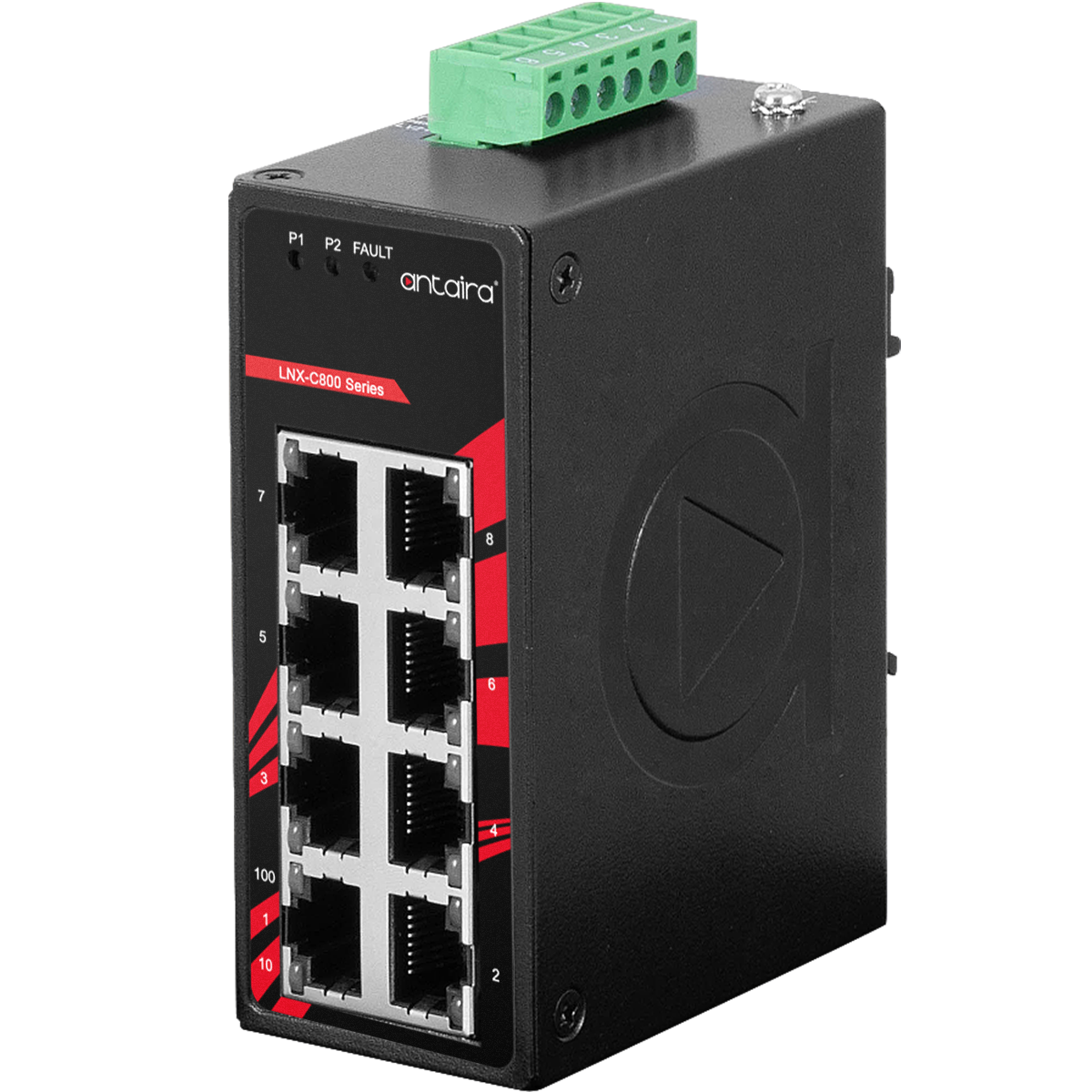

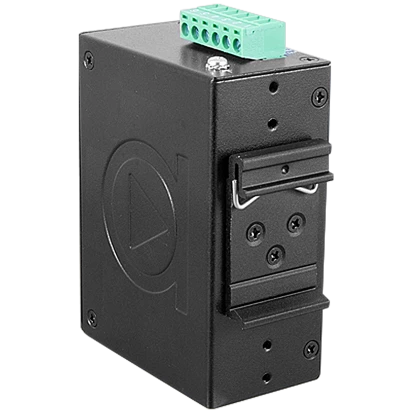

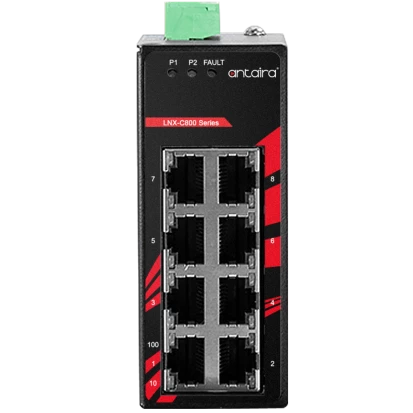

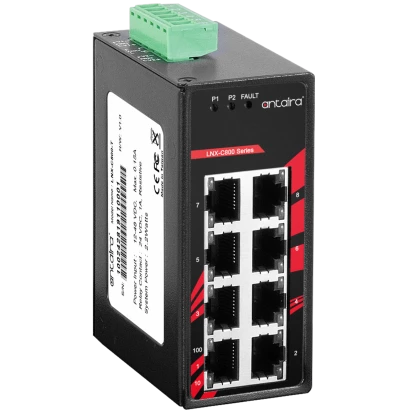

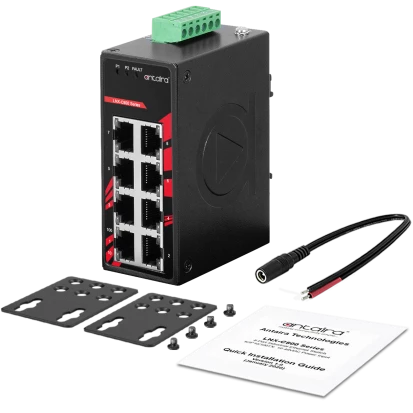

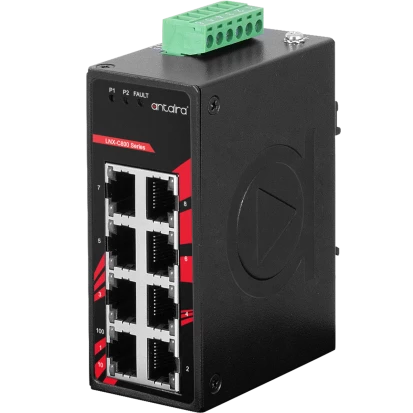

LNX-C800

SKU: 80300500

Compact Industrial Unmanaged Ethernet Switch, IP30, 8x10/100Base-TX, Power Input 12..48 VDC, Operating Temperature -10..65 C

Price on request

Ethernet

Total Ethernet

10/100 Mbit/s

Switch Properties

MAC Table Size

1000

Supported Protocols

IEEE Standard

IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X)

System Power Input

Input Voltage DC

12..48 V

Construction

Construction Chassis

Metal Chassis

Mounting Configuration

DIN-Rail mount, Wall

Protection Level of Chassis

IP30

Dimensions and weight

Width

40 mm

Depth

95 mm

Height

70 mm

Operating Conditions

Operating Temperature

-10..65 °C

Humidity

5-95%

Standards and Certifications

Certifications

EMI

FCC Part 15 Subpart B Class A

EMS

IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035

Safety

UL 61010-2-201

Freefall

IEC 60068-2-32

Vibration And Shock

IEC 60068-2-6, IEC 60068-2-27

Dimensions

Net Weight

0.3 kg

Gross Weight

0.45 kg
