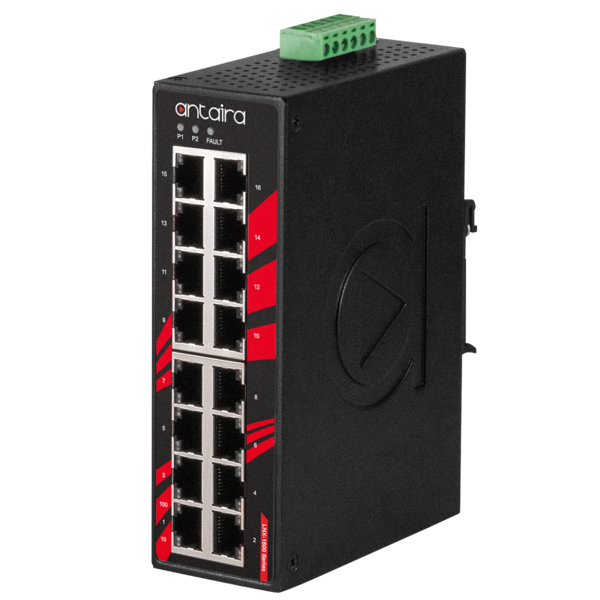

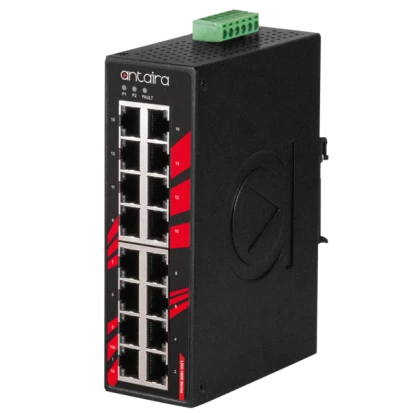

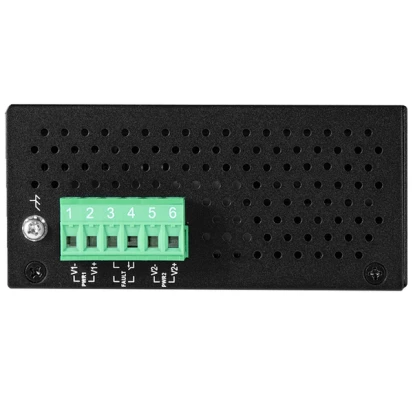

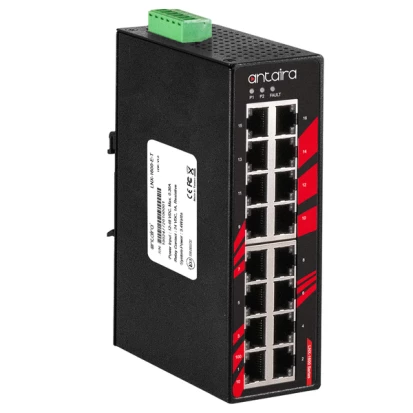

LNX-1600-E-T
Antaira Technologies
SKU: 80325100
Industrial Unmanaged Ethernet Switch, IP30, E-mark, 16x10/100Base-TX, 12..48VDC, Operating Temperature -40..75 C
Price on request
Available
Available
Ethernet
Total Ethernet
16
10/100/1000 Mbit/s
16
Switch Properties
MAC Table Size
16000
Jumbo Frame Size
1.6 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
46 mm
Depth
142 mm
Height
99 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55032, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55035
Vehicle
E-Mark
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.6 kg
Gross Weight
0.8 kg
Ethernet
Total Ethernet
16
10/100/1000 Mbit/s
16
Switch Properties
MAC Table Size
16000
Jumbo Frame Size
1.6 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
46 mm
Depth
142 mm
Height
99 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55032, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55035
Vehicle
E-Mark
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.6 kg
Gross Weight
0.8 kg
Ethernet
Total Ethernet
16
10/100/1000 Mbit/s
16
Switch Properties
MAC Table Size
16000
Jumbo Frame Size
1.6 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
46 mm
Depth
142 mm
Height
99 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55032, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55035
Vehicle
E-Mark
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.6 kg
Gross Weight
0.8 kg
Ethernet
Total Ethernet
16
10/100/1000 Mbit/s
16
Switch Properties
MAC Table Size
16000
Jumbo Frame Size
1.6 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
46 mm
Depth
142 mm
Height
99 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55032, FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55035
Vehicle
E-Mark
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.6 kg
Gross Weight
0.8 kg
Documentation
Documentation
Documentation
Documentation
Get a Quote
