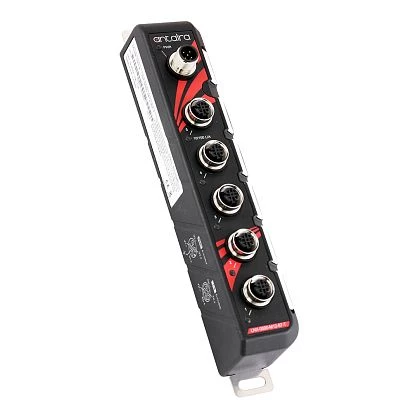

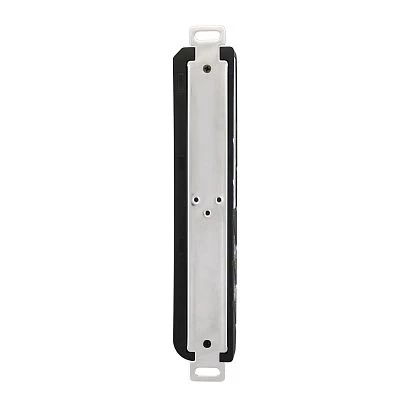

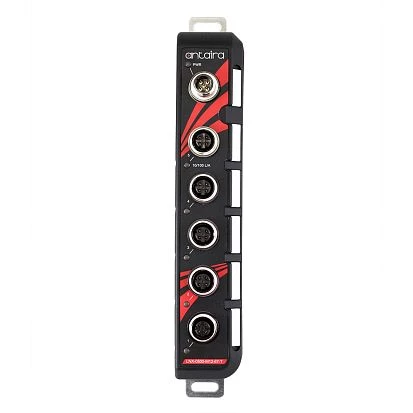

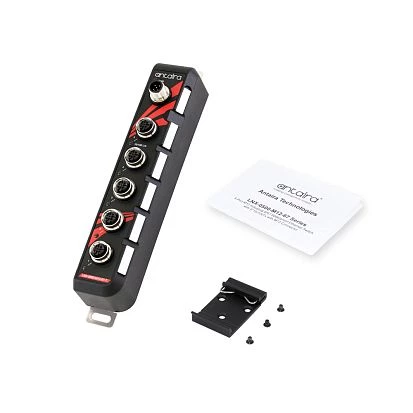

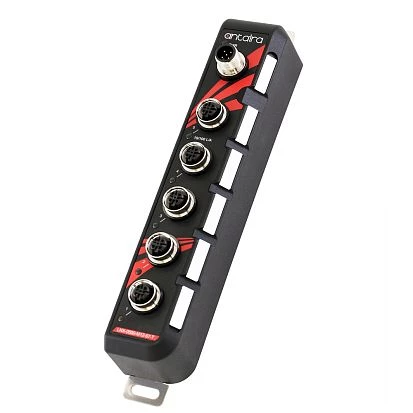

LNX-0500-M12-67-T
Antaira Technologies
SKU: 80186700
Industrial Unmanaged Ethernet Switch, IP67, 5x10/100Base-TX M12, 12..48VDC, Operating Temperature -40..75 C
Price on request
Available
Available
Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
M12
Switch Properties
MAC Table Size
1000
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
12..48 V
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP67
Dimensions and weight
Width
37.13 mm
Depth
215.73 mm
Height
32.8 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
EMS
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.34 kg
Gross Weight
0.6 kg
