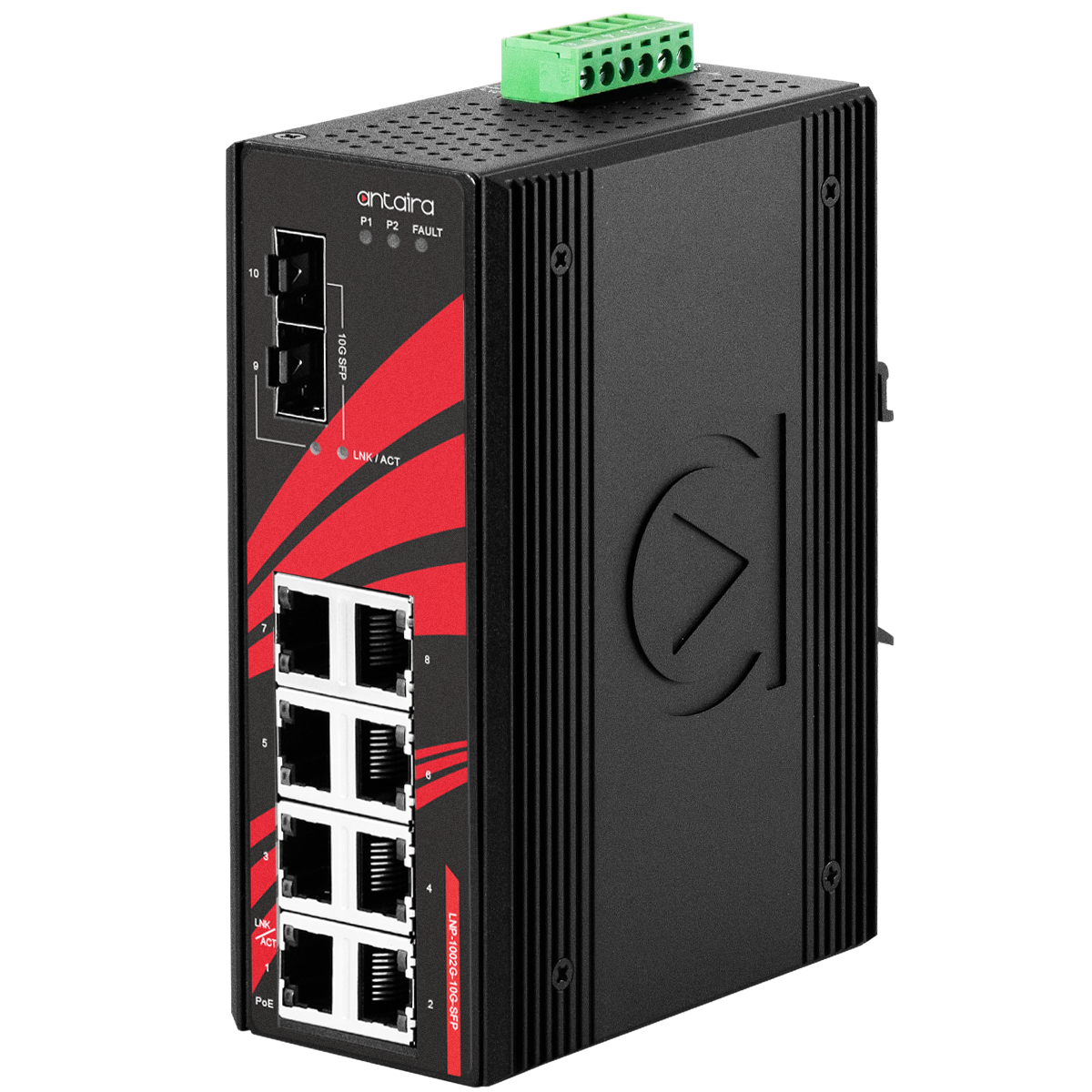

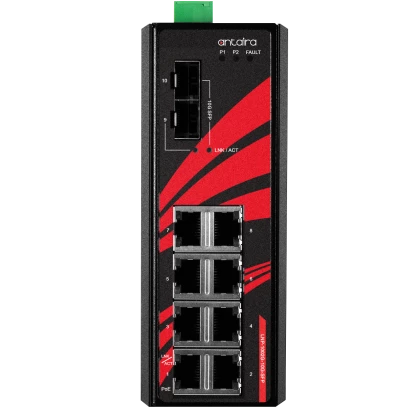

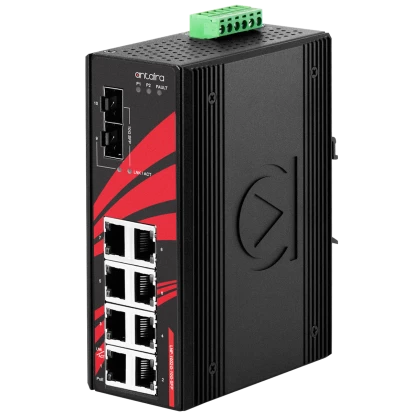

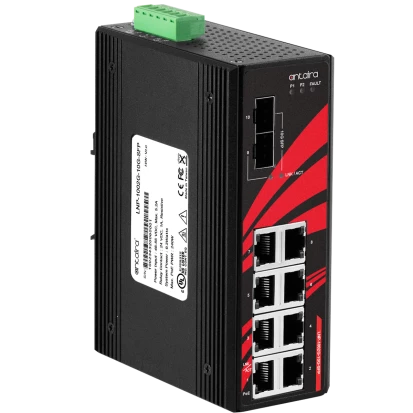

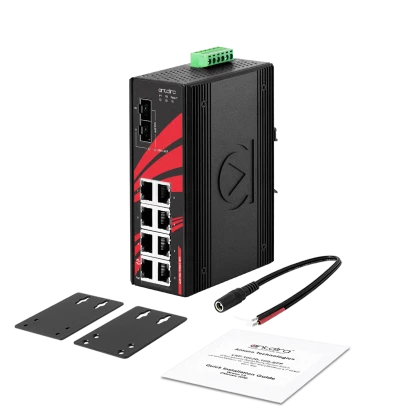

LNP-1002G-10G-SFP
Antaira Technologies
SKU: 80210300
Industrial PoE+ Unmanaged Ethernet Switch, IP30, 8x10/100/1000Base-TX with PoE+, 2x10GbE SFP+, 48..55VDC, Operating Temperature -40..60 C
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
10 Gbit/s SFP+ Ports
2
PoE+ 10/100/1000 Mbit/s
8
Switch Properties
MAC Table Size
16000
Jumbo Frame Size
9.2 kB
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
48..55 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Protection Level of Chassis
IP30
Dimensions and weight
Width
54 mm
Depth
99 mm
Height
142 mm
Operating Conditions
Operating Temperature
-40..60 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.45 kg
Gross Weight
1 kg
