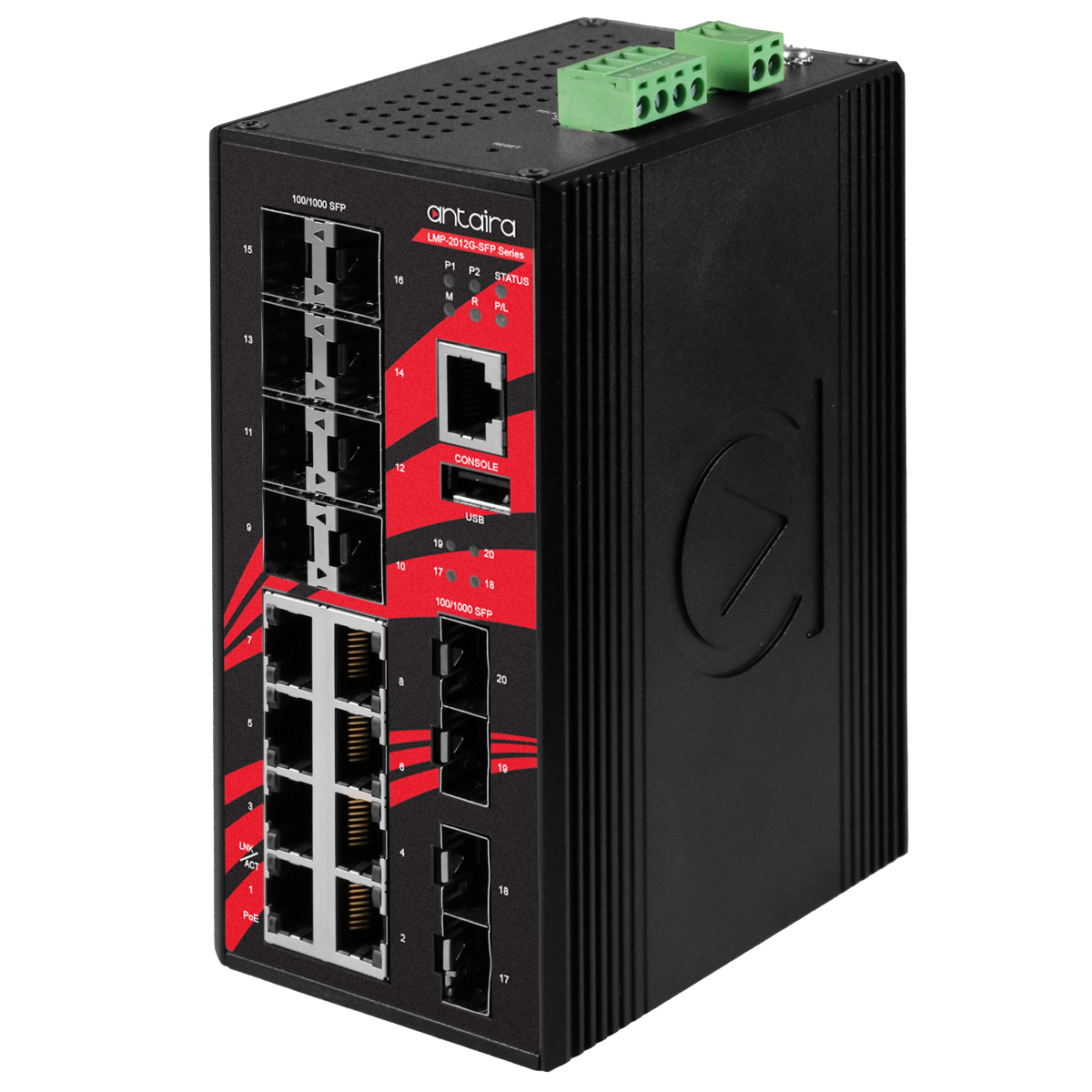

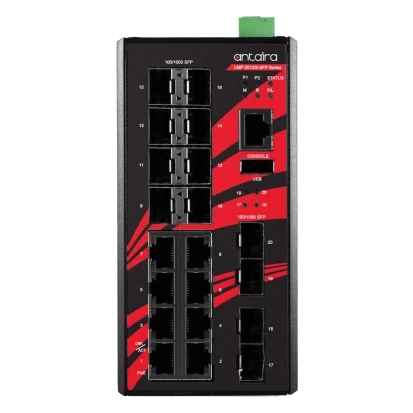

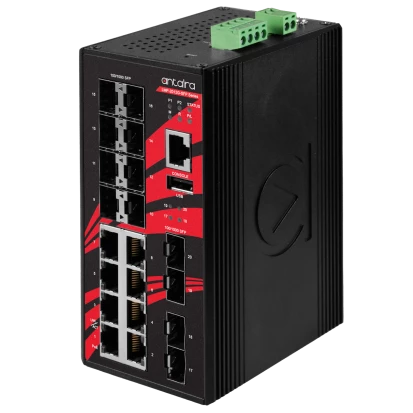

LMP-2012G-SFP-T
Antaira Technologies
SKU: 80228200
Industrial Layer 3 Managed PoE+ Ethernet Switch, IP30, 8x10/100/1000Base-TX with PoE+, 12x100/1000Base-X SFP, 1xUSB, Power Input 48..55 VDC, Operating Temperature -40..75 C
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
SFP 100/1000 Mbit Ports
12
PoE+ 10/100/1000 Mbit/s
8
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
4095
IGMP Groups
1024
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, Telnet, DHCP, NTP, GVRP, RMON, TFTP, LACP, IGMP Snooping v1/v2/v3, GARP
Reservation protocols
ERPS, MSTP, STP, RSTP
Security Protocols
HTTPS, SSH
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.3x for Flow Control, IEEE 802.3az for Energy-Efficient Ethernet
System Power Input
Input Voltage DC
48..55 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration

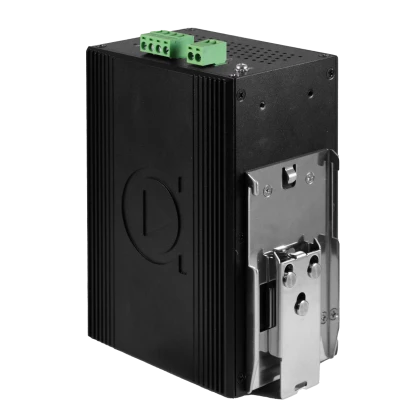

DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
67 mm
Depth
142 mm
Height
99 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035
Safety
UL 61010-2-201
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.7 kg
Gross Weight
2.2 kg
