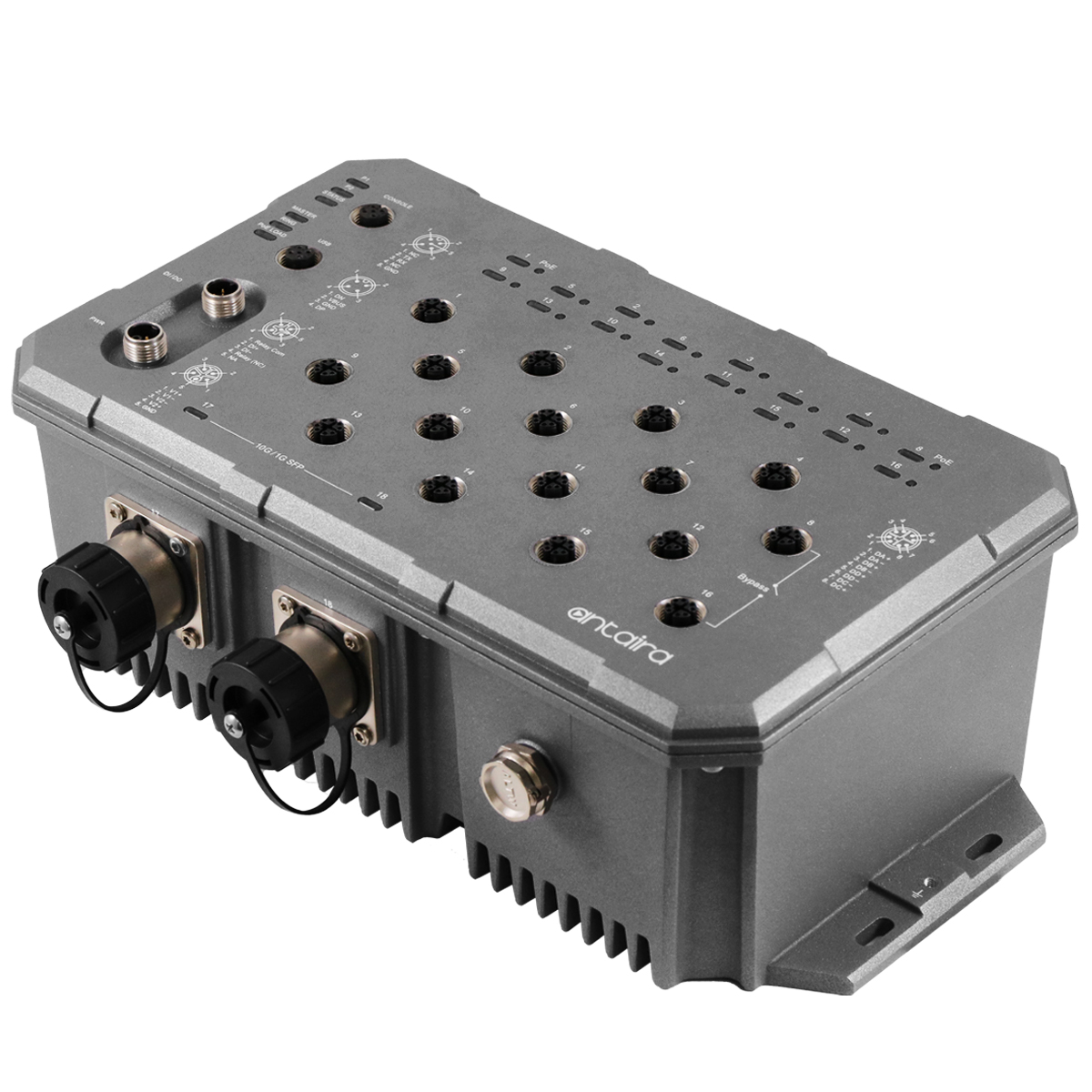

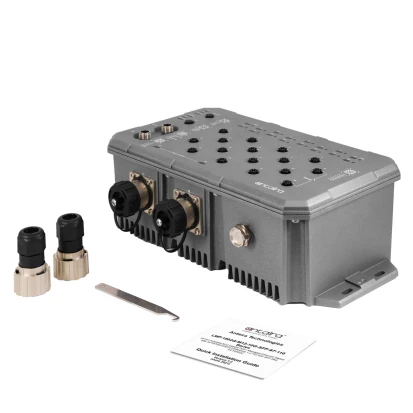

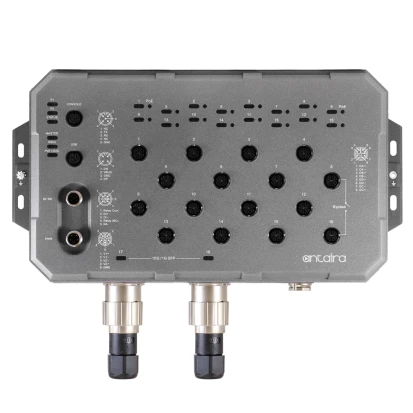

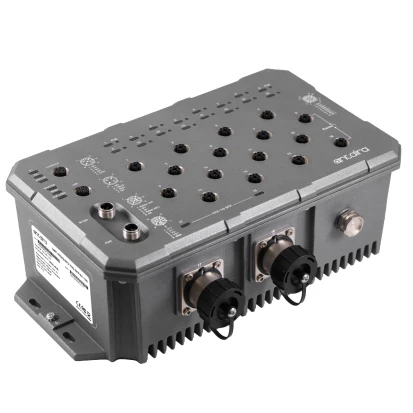

LMP-1802G-M12-10G-SFP-67-110
Antaira Technologies
SKU: 80257500
Industrial Layer 3 Managed Ethernet Switch, IP67, 16x10/100/1000Base-TX M12 with PoE, 2x1000/10G SFP, 1xUSB, 1xDI, Power Input 24..110 VDC, Operating Temperature -10..65 C
Price on request
Available
Available
Ethernet
Total Ethernet
16
10/100/1000 Mbit/s
16
Type 10/100/1000 Mbit/s
M12
10 Gbit SFP+ Ports
2
PoE+ 10/100/1000 Mbit/s
16
Switch Properties
MAC Table Size
32000
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
4095
IGMP Groups
1024
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, Telnet, DHCP, GVRP, TFTP, LACP, IGMP Snooping v1/v2/v3, GARP, DHCP Option 82
Reservation protocols
ERPS, MSTP, STP, RSTP
Security Protocols
HTTPS, SSH
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
Digital Input
Total channels of digital input
1
System Power Input
Input Voltage DC
24..110 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP67
Dimensions and weight
Width
183 mm
Depth
295 mm
Height
101.3 mm
Operating Conditions
Operating Temperature
-10..65 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035
Rolling Stock
EN 50121-4, EN 50121-3-2
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
4.4 kg
Gross Weight
5.2 kg
