LMP-1204G-SFP-bt-T

Antaira Technologies
SKU: 80225100

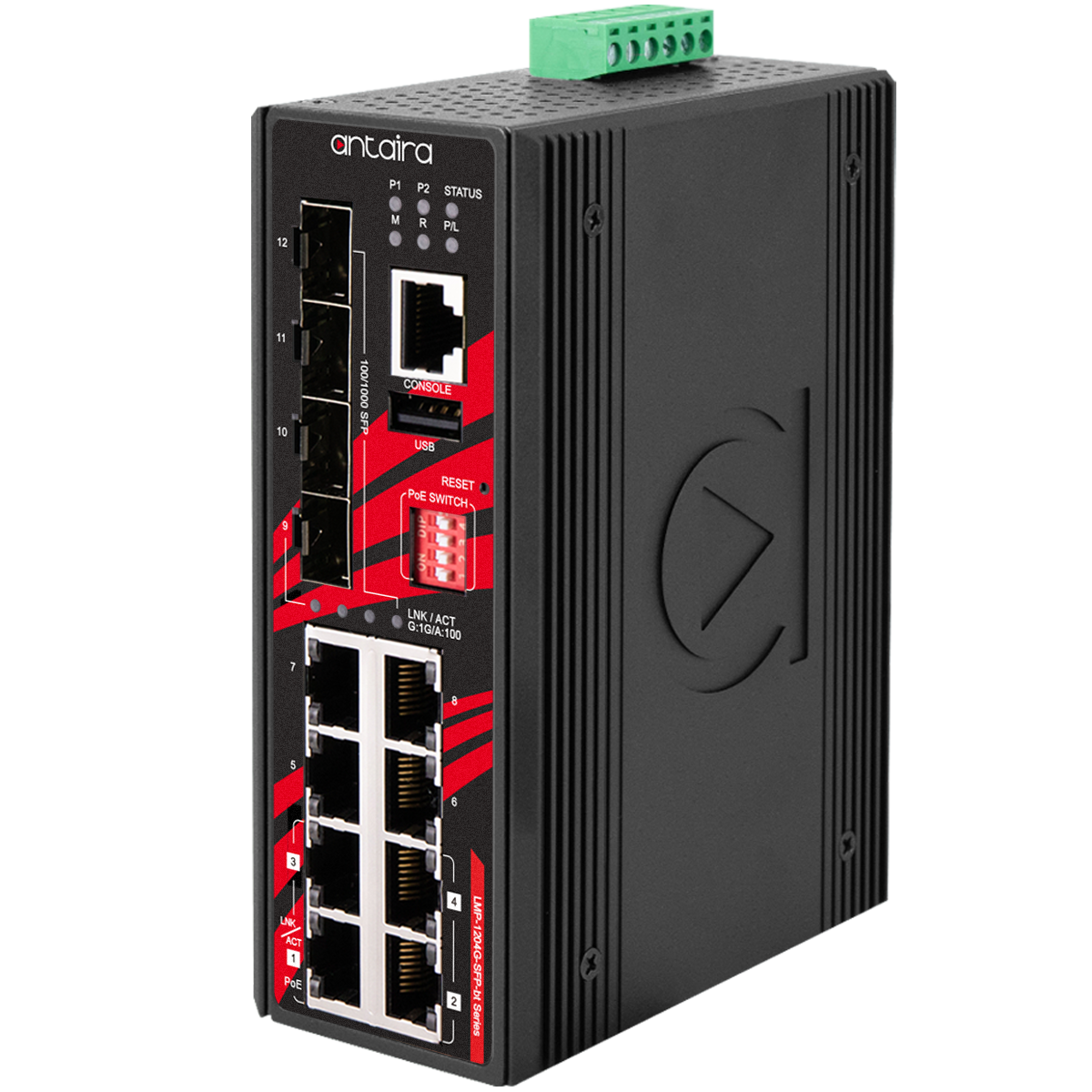

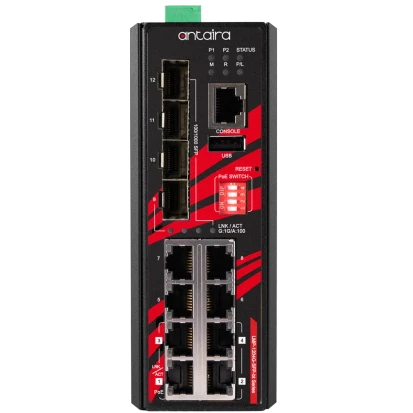

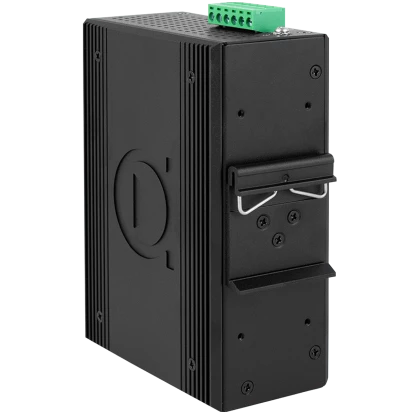

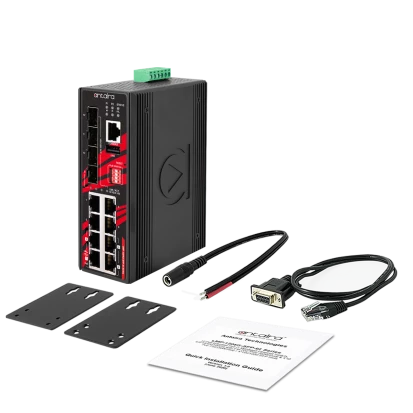

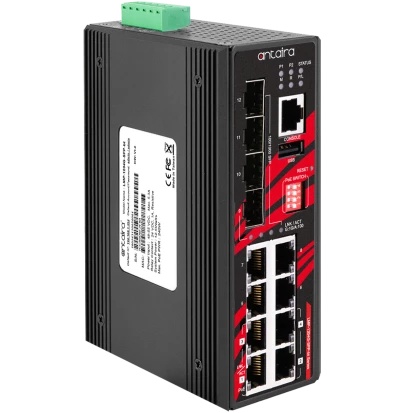

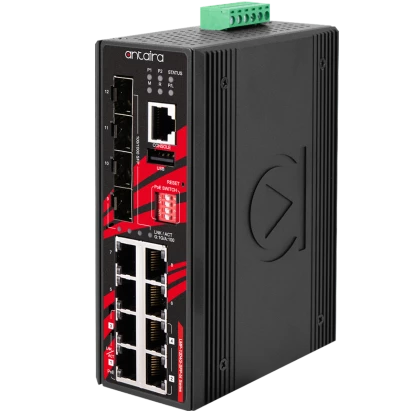

Industrial Layer 3 Managed PoE+ Ethernet Switch, IP30, 8x10/100/1000Base-TX with PoE++, 4x100/1000 SFP, Power Input 48..55 VDC, Operating Temperature -40..75 C
Price on request
Available
Available

Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
SFP 100/1000 Mbit/s Ports
4
PoE+ 10/100/1000 Mbit/s
8
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
4095
IGMP Groups
1024
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, LLDP, Syslog, Telnet, DHCP, NTP, GVRP, RMON, TFTP, LACP, IGMP Snooping v1/v2/v3, GARP, DHCP Option 82
Reservation protocols
ERPS, MSTP, STP, RSTP
Security Protocols
SSH
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.3x for Flow Control, IEEE 802.3az for Energy-Efficient Ethernet
System Power Input
Input Voltage DC
48..55 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
54 mm
Depth
142 mm
Height
99 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
