LMP-0702G-SFP-V2

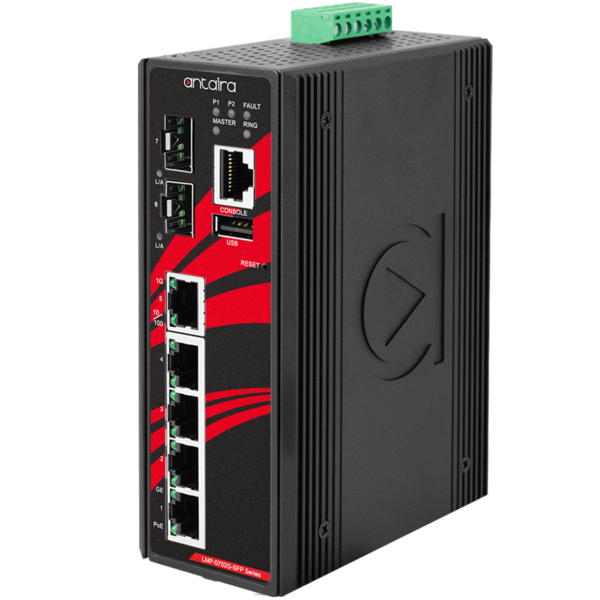

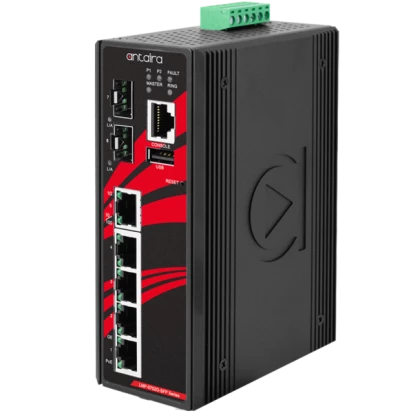

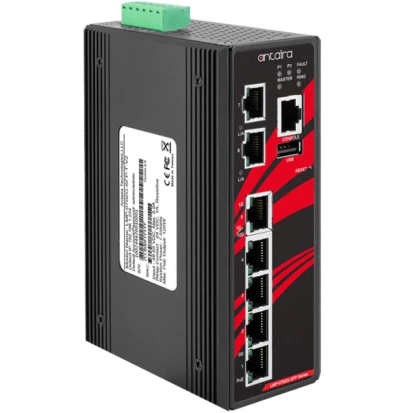

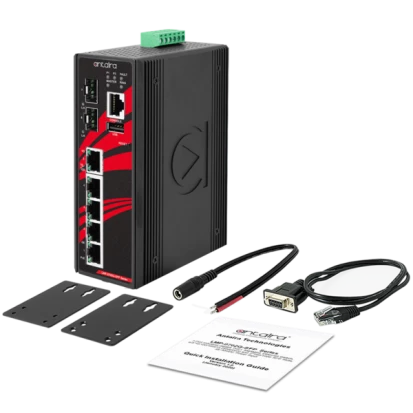

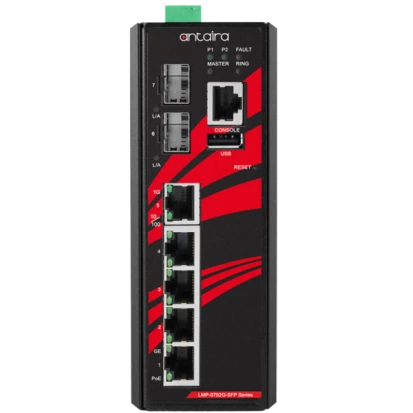

LMP-0702G-SFP-V2

Antaira Technologies
SKU: 80310700
Industrial L3 Managed PoE+ Ethernet Switch, IP30, 5x10/100/1000Base-TX with 4xPoE+, 2x100/1000 SFP, 48..55 VDC, Operating Temperature -10..65 C
Price on request
Available
Available

Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
SFP 100/1000 Mbit/s Ports
2
PoE+ 10/100/1000 Mbit/s
4
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
4095
IGMP Groups
1024
Supported Protocols
Protocol Layer 3
Static Routing
Managment Protocols
DHCP Server/Client, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, DNS, NTP, GVRP, RMON, TFTP, IGMP, LACP, ARP, GARP, DHCP Option 82
Reservation protocols
ERPS, MSTP, STP, RSTP
Security Protocols
HTTPS, SSH2
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3az for Energy-Efficient Ethernet
System Power Input
Input Voltage DC
48..55 V
Construction
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
54 mm
Depth
142 mm
Height
99 mm
Operating Conditions
Operating Temperature
-10..65 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035
Safety
UL 61010-2-201
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.9 kg
Gross Weight
1.2 kg
Ethernet
