iWSN-110X-PCT-ME

iWSN-110X-PCT-ME

ICP DAS
SKU: 09101900

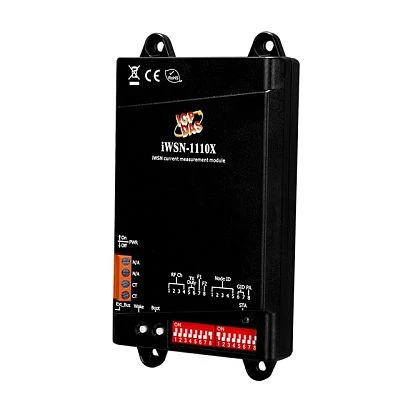

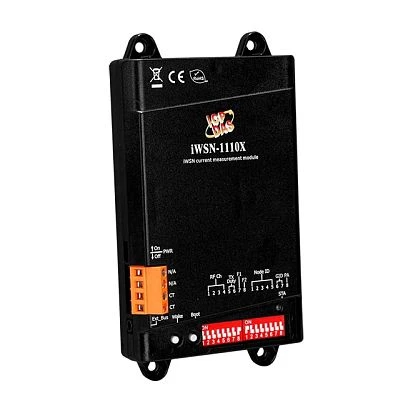

iWSN Current Sensing Module with 1-ch CT Input and 1 Expansion Interface (RoHS)
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall, Magnetic mount
RF Interface
Frequency
433 MHz
AC Power Measurement
Frequency
50/60Hz
Input Voltage
10...500V AC
Input Current
100А, 200А, 400А
CT Type
Split-core CT
Power Parameter Measurement
True RMS current (Irms)
Operating Conditions
Operating Temperature
0..45 °C
Dimensions and weight
Width
85 mm
Depth
25 mm
Height
152 mm
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall, Magnetic mount
RF Interface
Frequency
433 MHz
AC Power Measurement
Frequency
50/60Hz
Input Voltage
10...500V AC
Input Current
100А, 200А, 400А
CT Type
Split-core CT
Power Parameter Measurement
True RMS current (Irms)
Operating Conditions
Operating Temperature
0..45 °C
Dimensions and weight
Width
85 mm
Depth
25 mm
Height
152 mm
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall, Magnetic mount
RF Interface
Frequency
433 MHz
AC Power Measurement
Frequency
50/60Hz
Input Voltage
10...500V AC
Input Current
100А, 200А, 400А
CT Type
Split-core CT
Power Parameter Measurement
True RMS current (Irms)
Operating Conditions
Operating Temperature
0..45 °C
Dimensions and weight
Width
85 mm
Depth
25 mm
Height
152 mm
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall, Magnetic mount
RF Interface
Frequency
433 MHz
AC Power Measurement
Frequency
50/60Hz
Input Voltage
10...500V AC
Input Current
100А, 200А, 400А
CT Type
Split-core CT
Power Parameter Measurement
True RMS current (Irms)
Operating Conditions
Operating Temperature
0..45 °C
Dimensions and weight
Width
85 mm
Depth
25 mm
Height
152 mm
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
Documentation
Datasheet iWSN-1100 Quick Start iWSN-1110X
Documentation
Datasheet iWSN-1100 Quick Start iWSN-1110X
Documentation
Datasheet iWSN-1100 Quick Start iWSN-1110X
Documentation
Datasheet iWSN-1100 Quick Start iWSN-1110X
ICP DAS iWSN-110X-160-ME iWSN Current Sensing Module with 1-ch CT Input and 1 Expansion Interface (RoHS) (Included 100A CT x1)
ICP DAS iWSN-110X-240-ME iWSN Current Sensing Module with 1-ch CT Input and 1 Expansion Interface (RoHS) (Included 200A CT x1)
ICP DAS iWSN-110X-360-ME iWSN Current Sensing Module with 1-ch CT Input and 1 Expansion Interface (RoHS) (Included 400A CT x1)
