IV7T-RK2U
Winmate
SKU: 06744200

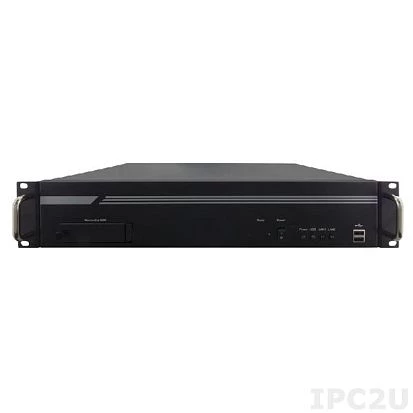

Fanless Embedded Server PC, 19" rack with 2U, Intel Core i7-3520M 2.9GHz, 4 Gb RAM, VGA, 3xCOM, 2xLAN, 6xUSB, 128GB SSD mSATA, Audio, Input Voltage 110-240V DC/AC, without OS
Price on request
Available on order
Available on order
Construction
Construction Chassis
Heavy-Duty Steel Chassis
Mounting Configuration
19" Rackmount
Height
2 U
CPU
Processor Installed
Intel Core i7-3520M
Max CPU frequency
3.6 GHz
Chipset
Chipset
Intel HM76
Memory
Form-factor
DDR3
Socket Type
1xSODIMM
Default on Board Memory
2 GB
Maximum Memory
16 GB
Ethernet
Controller Type
Broadcom BCM57780
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-232/422/485
1
USB Total
6
USB 2.0
2
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
2
Cage Door
Yes
2.5" Cage External
2
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
128 GB
Extension Slots
PCI
2
LED / Controls
LED
1xHDD LED, Battеry Status, LAN LED
Controls
On/Off, 1xReset
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
4xCOM
Connectors
3xDB9, DB15 VGA, 2xRJ45, 6xUSB, Mic In, Line In, Line Out, 2xPS/2 Keyboard/Mouse
System Power Input
Input Voltage AC
110..240 V
Input Voltage DC
110..240 V
Dimensions and weight
Width
482 mm
Height
88 mm
Depth
356 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE, FCC
Power Automation
IEC 61850-3
Dimensions
Net Weight
10 kg
Gross Weight
12 kg
