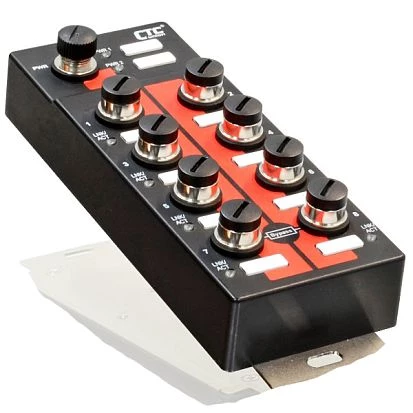

ITP-800-E

ITP-800-E

CTC Union
SKU: 56106000
Unmanaged Ethernet Switch with 8x 100 Base-TX M12 Ports, EN50155 Certification, Redundant Dual 12/24/48VDC Input Power, IP67, -40..+75C Operating Temperature
Price on request
Available
Available

Ethernet
Total Ethernet
8
10/100 Mbit/s
8
Type 10/100 Mbit/s
8xM12
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Redundant power input
Yes
Input Voltage DC
8..60 V
Power Supply Reserve input Voltage DC
8..60 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP67
Dimensions and weight
Width
65.1 mm
Depth
39 mm
Height
191.5 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 61000-6-2, EN 61000-6-4
Rolling Stock
EN 50121-4, EN 50155
Safety
UL 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 61373
Dimensions
Net Weight
0.41 kg
Gross Weight
0.7 kg
