ITP-500-E

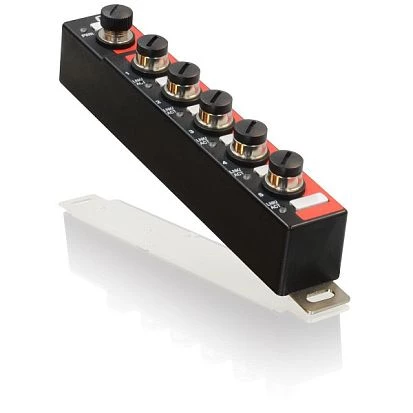

ITP-500-E

CTC Union
SKU: 56105800
Unmanaged Ethernet Switch with 5x 100 Base-TX M12 Ports, EN50155 Certification,12/24/48VDC Input Power, IP67, DIN-Rail (optional), -40..+75C Operating Temperature
Price on request
Available
Available

Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
M12
Switch Properties
Managed
No
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
8..60 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP67
Dimensions and weight
Width
30 mm
Depth
43 mm
Height
206.5 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, EN 61000-6-2, EN 61000-6-4
Rolling Stock
EN 50121-4, EN 50155
Safety
UL 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 61373
Dimensions
Net Weight
0.26 kg
Gross Weight
0.5 kg
