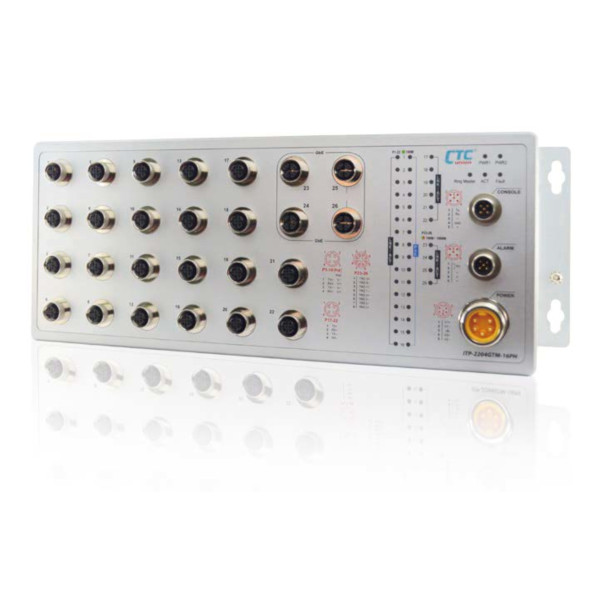

Managed Ethernet Switch with 22x 100 Base-TX and 4x 1000 Base-T M12 Ports,16xM12 PoE+ ports, EN50155/EN50121-4/EN60950-1 Certification, 24-110V DC Input Power, -40..+70C Operating Temperature
ITP-2204GTM-16PHE
CTC Union
SKU: 56734000
Price on request
Available on order
Available on order
Ethernet
10/100 Mbit/s
22
10/100/1000 Mbit/s
4
PoE/PoE+ 10/100 Mbit/s
16
Supported Protocols
Managment Protocols
HTTP, VLAN
Security Protocols
SSH, RADIUS, SSL
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP64
Operating Conditions
Operating Temperature
-40..70 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15
EMS
IEC 61000-6-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-4
Rolling Stock
EN 50121-4
Safety
UL 60950-1, EN 60950-1
Dimensions
Net Weight
0.41 kg
Gross Weight
0.7 kg
