IS-RG512-4F-A

IS-RG512-4F-A

ISON
SKU: 56349600

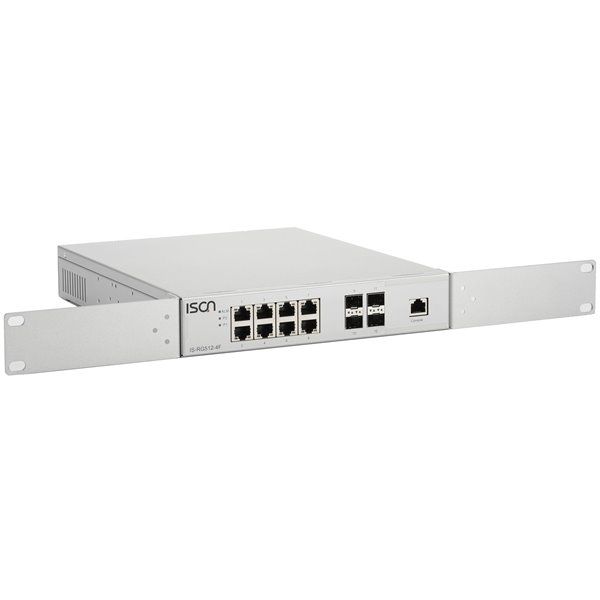

Industria 12-port Rackmount Managed Switch Layer 2/4 with 8x100/1000 BaseT(X) Ports, 4x100/1000 SFP slots, 100-240VAC Input Power,Singlel AC, -40..+75C Operating Temperature
Price on request
Available
Available

Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
SFP 100/1000 Mbit/s Ports
4
Switch Properties
Switch Level
Layer 2
MAC Table Size
8000
Jumbo Frame Size
9 kB
Max. Number of VLANs
256
Supported Protocols
Managment Protocols
Telnet, VLAN, QoS, DHCP, TFTP, RARP
Reservation protocols
MSTP
Security Protocols
RADIUS, TACACS+
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage AC
100..240 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Embedded, Wall, 19" Rackmount
Protection Level of Chassis
IP30
Dimensions and weight
Width
220 mm
Depth
270 mm
Height
44 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE, FCC
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
2.5 kg
Gross Weight
3 kg
