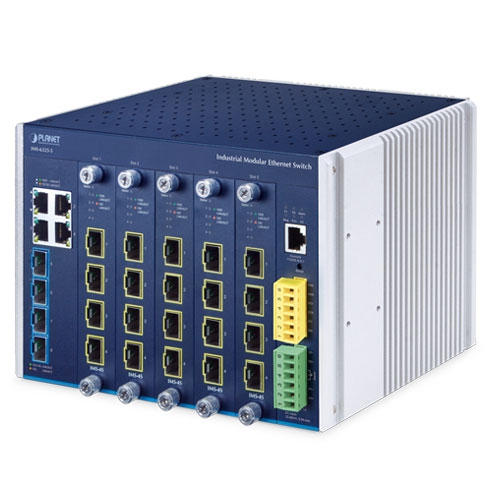

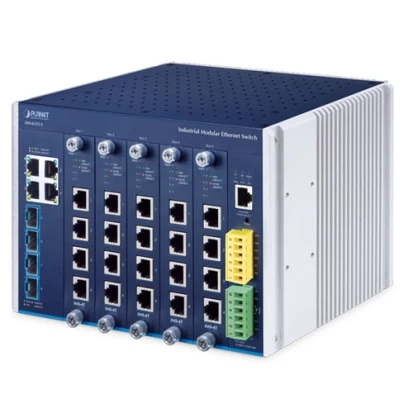

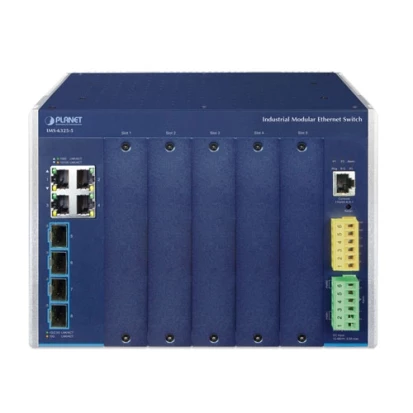

IMS-6325-5
Planet
SKU: 80073300
Industrial L3 Modular Managed Ethernet Switch, IP30, 4x10/100/1000Base-T RJ45 ports, 4x10GBase-SR/LR SFP+ ports, 2xDI, 2xDO, Dual 12..48 VDC, -40...+75C operating temperature
Price on request
Available
Available
Ethernet
Total Ethernet
4
10/100/1000 Mbit/s
4
10 Gbit SFP+ Ports
4
Supported Protocols
Protocol Layer 3
RIP V1/V2, OSPF
Managment Protocols
SNMPv1/v2c/v3, LLDP, Telnet, NTP, GVRP, IGMP Snooping v1/v2/v3, IGMP Querier
Reservation protocols
ERPS
Security Protocols
RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3ah OAM for Link-Fault Management
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
System Power Input
Input Voltage DC
12..48 V
Construction
Protection Level of Chassis
IP30
Dimensions and weight
Width
217 mm
Depth
135 mm
Height
152 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
EMS
EN 55032, EN 55035
Dimensions
Net Weight
3.6 kg
Gross Weight
4.6 kg
