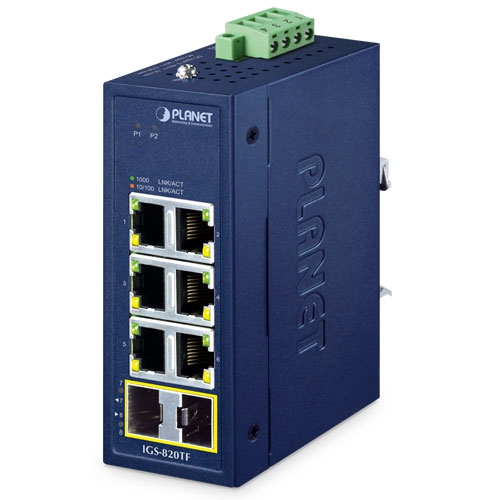

IGS-820TF
Planet
SKU: 80081200
Compact Industrial Ethernet Switch, IP30, 6x10/100/1000Base-T RJ45, 2x1000Base-X SFP, 9..48VDC, -40..75C Operating Temperature
Price on request
Available
Available
Ethernet
Total Ethernet
6
10/100/1000 Mbit/s
6
SFP 1000 Mbit Ports
2
Switch Properties
Jumbo Frame Size
9 kB
Supported Protocols
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet

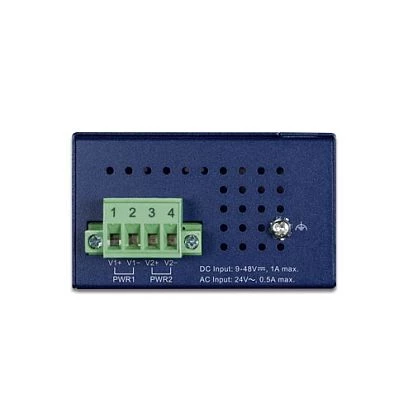

System Power Input
Input Voltage DC
9..48 V
Construction
Protection Level of Chassis
IP30
Dimensions and weight
Width
41 mm
Depth
70 mm
Height
115 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.35 kg
Gross Weight
1 kg
