IGS-604HPT-M12

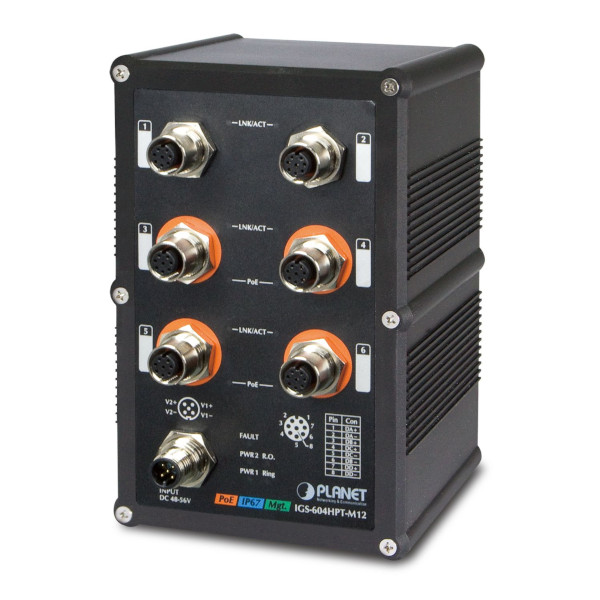

IGS-604HPT-M12

Planet
SKU: 56820800
Industrial IP67 DIN-Rail Pover-over-Ethernet L2+ Managed Switch with 4x1000 M12 802.3at PoE+ ports, 2x1000 M12 ports, Dual 48-56VDC Power Input, -40...+75C operating temperature
Price on request
Available
Available

Ethernet
10/100/1000 Mbit/s
2
PoE+ 10/100/1000 Mbit/s
4
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, Telnet, SNMP
Security Protocols
SSH, SSL
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
System Power Input
Input Voltage DC
48..56 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP67
Dimensions and weight
Width
103 mm
Depth
68.3 mm
Height
163 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.07 kg
Gross Weight
1.6 kg
