IGS-5225-8P2T4S

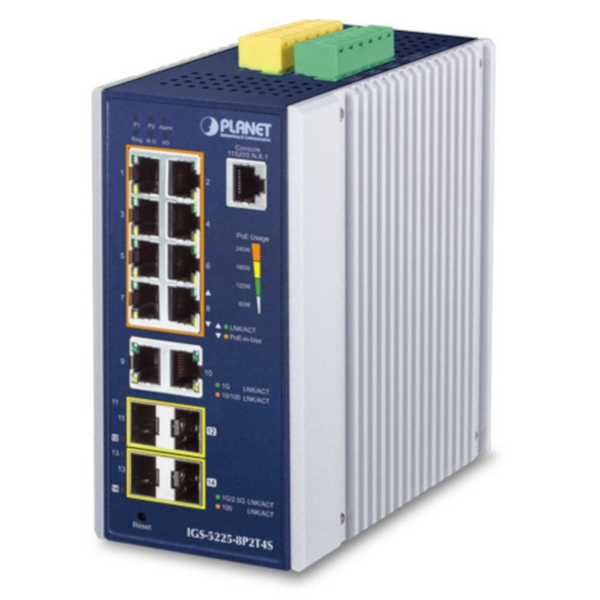

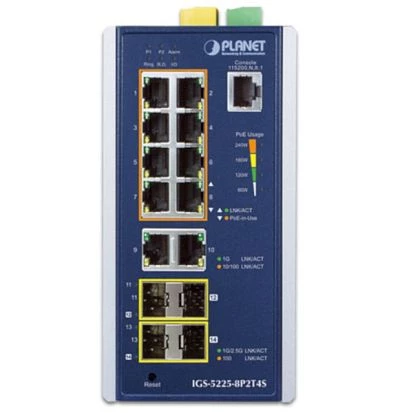

IGS-5225-8P2T4S

Planet
SKU: 57299400
Industrial DIN-Rail Managed L2 Ethernet 14x Ports Switch with 8x10/100/1000TX PoE 802.3at, 2x Gigabit 100/1000TX, 2x Gigabit SFP ports, 2x 1Gbit/2.5Gbit ports, 2xDIO, dual 48..56VDC-in, -40..75C Operating Temperature
Price on request
Available
Available

Ethernet
Total Ethernet
14
10/100/1000 Mbit/s
2
SFP 100/1000 Mbit/s Ports
4
PoE+ 10/100/1000 Mbit/s
8
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported Protocols
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3ah OAM for Link-Fault Management
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2

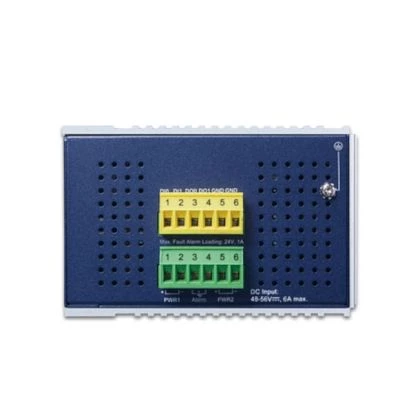

System Power Input
Redundant power input
Yes
Input Voltage DC
48..56 V
Power Supply Reserve input Voltage DC
48..56 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Desktop, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
76.8 mm
Depth
107.3 mm
Height
152 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
