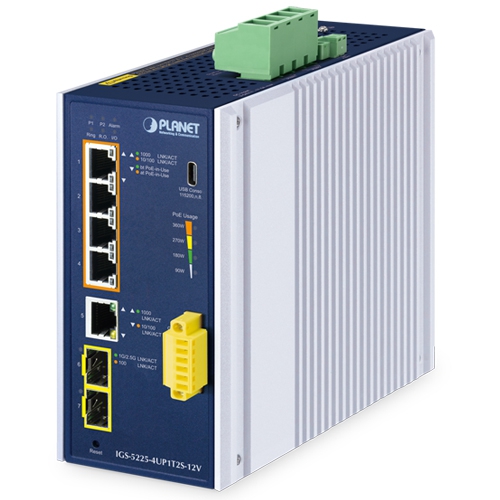

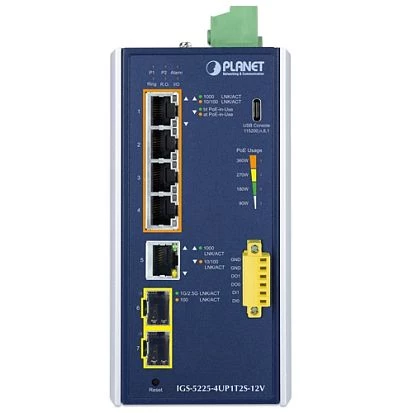

IGS-5225-4UP1T2S-12V
Planet
SKU: 80072900
Industrial L2 Managed Ethernet Switch w/12V Booster, IP30, 5x10/100/1000Base-T RJ45 ports with 4xPoE+, 2x100/1000/2500Base-X mini-GBIC SFP ports, 1xUSB, 2xDI, 2xDO, Dual 9..54 VDC, -40...+75C operating temperature
Price on request
Available
Available
Ethernet
Total Ethernet
5
10/100/1000 Mbit/s
5
SFP 100/1000 Mbit Ports
2
PoE+ 10/100/1000 Mbit/s
4
Supported Protocols
Protocol Layer 3
Static Routing
Managment Protocols
SNMPv1/v2c/v3, LLDP, Syslog, Telnet, NTP, GVRP, LACP, IGMP Snooping v1/v2/v3, IGMP Querier
Reservation protocols
ERPS
Security Protocols
SSH, RADIUS, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3ah OAM for Link-Fault Management, IEEE 802.3bz for 5GBaseT and 2.5GBaseT, IEEE 802.3bt for Power over Ethernet
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
System Power Input
Input Voltage DC
9..54 V
Construction
Protection Level of Chassis
IP30
Dimensions and weight
Width
76 mm
Depth
135 mm
Height
152 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.4 kg
Gross Weight
1.9 kg
