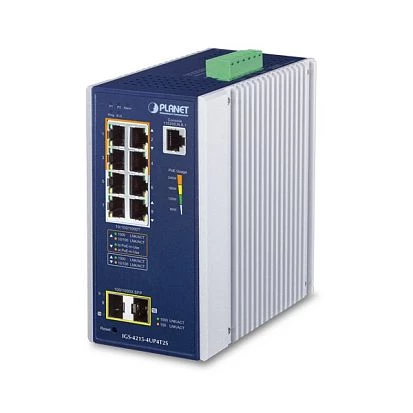

IGS-4215-4UP4T2S

IGS-4215-4UP4T2S

Planet
SKU: 57571300
Industrial 4-Port 10/100/1000T 802.3bt PoE + 4-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch
Price on request
Available
Available

Ethernet
10/100/1000 Mbit/s
8
PoE+ 10/100/1000 Mbit/s
4
Interfaces
RS-232
1
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
10 kB
Supported Protocols
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3bt for Power over Ethernet
Construction
Protection Level of Chassis
IP30
Dimensions and weight
Width
76.8 mm
Depth
152 mm
Height
107.3 mm
Standards and Certifications
Certifications
FCC Class A
EMS
EN 55032, EN 55035
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.06 kg
Gross Weight
1.5 kg
