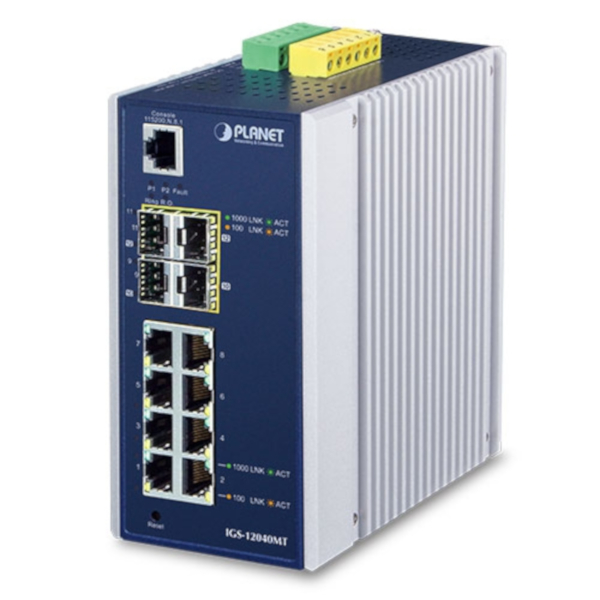

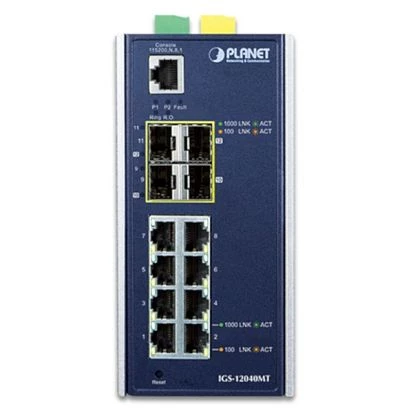

IGS-12040MT

Planet
SKU: 56818700
Industrial DIN-Rail L2/L4 Managed Ethernet Switch with 8x1000 Base T, 4x1000X SFP ports, 2xDI/DO, Redundant 12-72VDC/24VAC, -40..75C Operating Temperature
Price on request
Available
Available

Ethernet
Total Ethernet
12
10/100/1000 Mbit/s
8
SFP 100/1000 Mbit/s Ports
4
Switch Properties
Managed
Yes
Switch Level
Layer 2, Layer 3
Supported technologies
QoS
Supported functions
Port Mirror, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, Access Control Lists, MAC ACL, Ring Operation
MAC Table Size
8000
Jumbo Frame Size
9 kB
Max. Number of VLANs
255
Priority Queues
8
IGMP Groups
255
Supported Protocols
Protocol Layer 3
Static Routing
Managment Protocols
LLDP, Telnet, SNMP, NTP, IGMP Snooping v1/v2/v3, IGMP Querier
Security Protocols
SSH, SSL
IEEE Standard
IEEE 802.1ad for Q-in-Q tagging, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

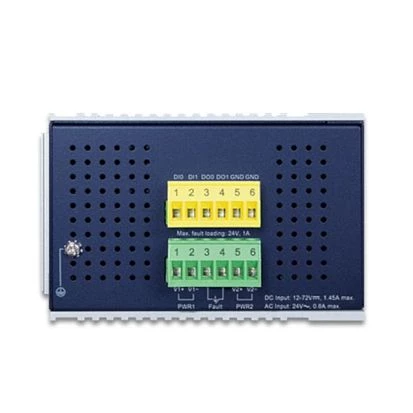

Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
2
Connectors
Connectors
RJ45 (Console)
System Power Input
Input Voltage DC
12..72 V
Input Voltage AC
24..24 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
76.8 mm
Depth
107.3 mm
Height
152 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC Class A
EMI
FCC Part 15 Subpart B Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1.04 kg
Gross Weight
1.5 kg
