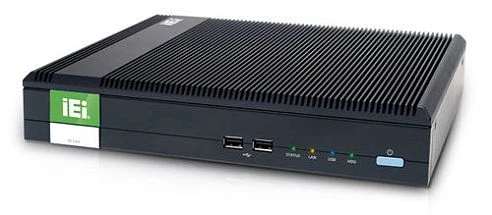

IDS-H61
IEI
SKU: 06267500
Fanless embedded system, Intel Celeron G530T 2.0GHz, 2GB DDR3 SO-DIMM pre-installed, up to 16GB, mSATA 32GB, DisplayPort, GbE, DVI, 2.5" HDD bay, serial port, 4xUSB 2.0, COM, SDHC card slot, HD Audio, 0...45C, 12V DC In
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Type
Fanless
CPU
Processor Installed
Intel Celeron G530T
Max CPU frequency
2 GHz
Chipset
Chipset
Intel H61
Memory
Form-factor
DDR3
Socket Type
2xSODIMM
Default on Board Memory
4 GB
Maximum Memory
16 GB
Assembly
Removable
Ethernet
Controller Type
Intel 82579LM 10/100/1000Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Wi-Fi
Wi-Fi Standard
802.11b/g/n
Interfaces
COM Total
1
RS-232
1
USB Total
4
USB 2.0
2
Drive interfaces
mSATA
1
SD Slots
1
MicroSDHC
1
Storage Cage
2.5" Cage Intenal
1
Installed drive
Drive Type
SSD
Storage Form-Factor
mSATA
1st Storage Capacity
32 GB
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
Connectors
Connectors
DB9, DVI-I, RJ45 Ethernet, 4xUSB, Line Out, DC Input, Display Port, 2xSMA
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
DC-DC
Output Power
90 W
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7
Dimensions and weight
Width
267 mm
Height
45 mm
Depth
160 mm
Operating Conditions
Operating Temperature
0..45 °C
Vibration
MIL-STD-810F 514.5C-1 with SATA HDD; MIL-STD-810F 514.5C-2 with mSATA
Standards and Certifications
Certifications
CE, FCC
MIL-STD-810
MIL-STD-810F Test Method 514.5C-2 Vibration, MIL-STD-810F Test Method 514.5C-1 Vibration
Dimensions
Net Weight
2.1 kg
Gross Weight
4.5 kg
