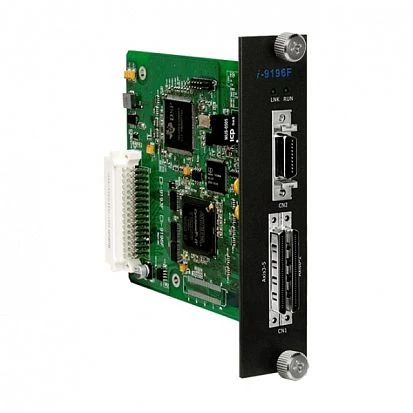

I-9196F
ICP DAS
SKU: 09212500
High-speed, DSP-based, 6-axis Motion Control Module with FRnet Master (For XP-9000/WP-9000 PAC), 24VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Industrial Interfaces
Frnet Port
1
Expansion Module
Communication interface
Parallel Bus
Digital Input
Total channels of digital input
12
Isolation of Digital Input
2500 V
Number of channels
6
Signal Type
A/B, Up/Down
Counter capacity
32 Bit
Max frequency
12 kHz
Digital Output
Total channels of digital output
3
Channels
6
Signal Type
A/B, CW/CCW, Pulse/Dir
Connectors
Connectors
68-pin SCSI-II
Operating Conditions
Operating Temperature
0..60 °C
Dimensions
Net Weight
0.08 kg
Gross Weight
0.16 kg
