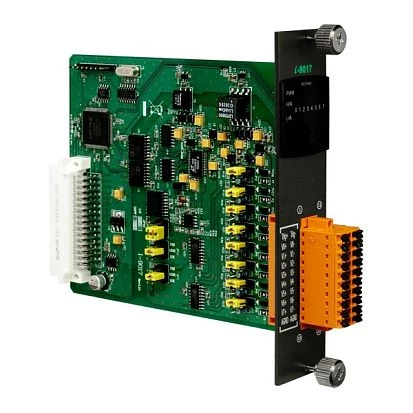

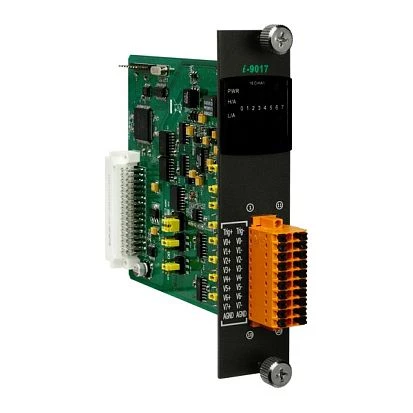

I-9017

I-9017

ICP DAS
SKU: 07637100
14-bit, 100 K sampling rate, 16/8-channel analog input module (RoHS)
Price on request
Available
Available

Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Analog Input
Total channels of analog input
16
Number of Bits
14 Bit
Voltage range
+/-1.25 V, +/-2.5 V, +/-5 V, +/-10 V
Current range
-20...+20 mA
Sampling rate
100 Hz
Differential channels
8
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
30.3 mm
Depth
144 mm
Height
134 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
EMS
IEC 61000-4-2
Dimensions
Net Weight
0.23 kg
Gross Weight
0.23 kg
Construction
