ICP-DAS I-9K Parallel Bus Modules

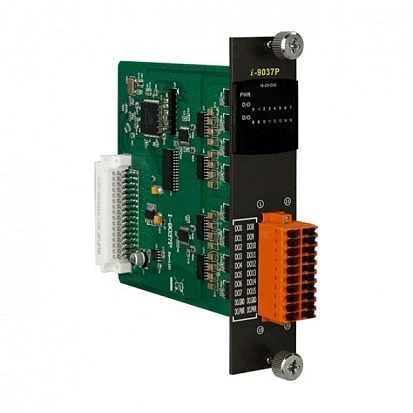

I-9037P

I-9037P

ICP DAS
SKU: 08970200
16-ch Isolated DO (Source, PNP) Module (RoHS)
Price on request
Available
Available

Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Expansion Module
Communication interface
Parallel Bus
Digital Output
Total channels of digital output
16
Type
Open emmiter
Sink/Source
Source
Output voltage
5~30 V
Max. load current
700 mA
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
31 mm
Depth
144 mm
Height
134 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
EMS
IEC 61000-4-2
Dimensions
Gross Weight
0.5 kg
Construction
Construction Chassis
Open Frame
Mounting Configuration
