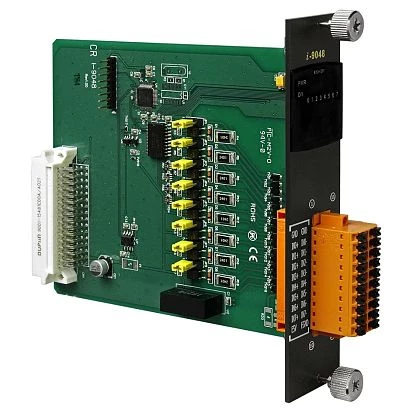

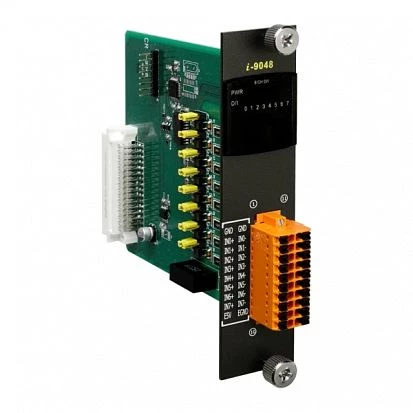

I-9048

I-9048

ICP DAS
SKU: 08335100
8-channel Digital Input with Interrupt Module (RoHS)
Price on request
Available
Available

Construction
Construction Chassis
Open Frame
Mounting Configuration
Embedded
Expansion Module
Communication interface
Parallel Bus
Digital Input
Total channels of digital input
8
Type
Dry contact, Wet contact
Level of Logic "0"
0~1 V
Level of Logic "1"
4~30 V
Sink/Source
Sink, Source
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
31 mm
Depth
144 mm
Height
134 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE, FCC
EMS
IEC 61000-4-2
Dimensions
Gross Weight
0.5 kg
