ICP-DAS i-8K Parallel bus Extension Modules

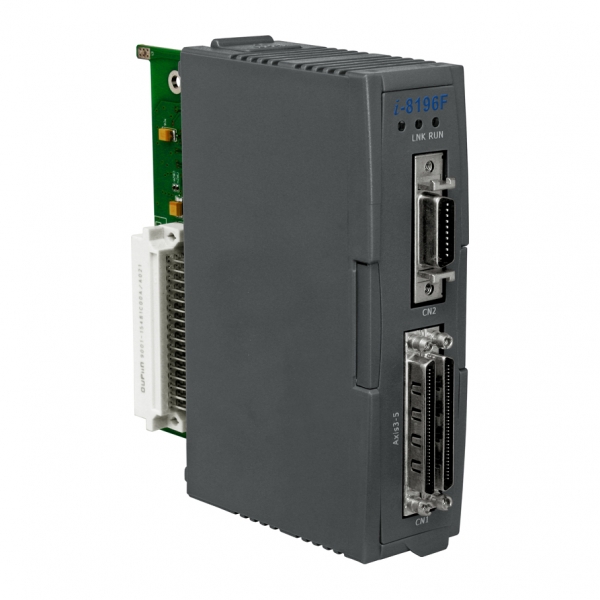

I-8196F

I-8196F

SKU: 08327200

High-Speed 6-axis Motion Control Module with FRnet Master (For XP-8000/WP-8000 PAC)

Price on request

Construction

Construction Chassis

Plastic Chassis

Expansion Module

Communication interface

Parallel Bus

Digital Input

Total channels of digital input

12

Number of channels

6

Signal Type

A/B, Up/Down

Counter capacity

32 Bit

Max frequency

12 kHz

Digital Output

Total channels of digital output

3

Channels

6

Signal Type

A/B, CW/CCW, Pulse/Dir

Output frequency range

0~4 MHz

Connectors

Connectors

20-pin SCSI II, 68-pin SCSI VHDCI

Operating Conditions

Operating Temperature

0..60 °C

Dimensions

Net Weight

0.08 kg

Gross Weight

0.16 kg

Documentation

Datasheet I-8196F, I-9196F Getting Started I-8196F User Manual I-8196F
