ICP-DAS i-8K Parallel bus Extension Modules

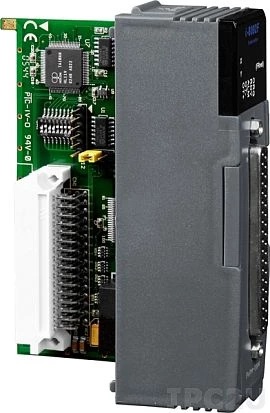

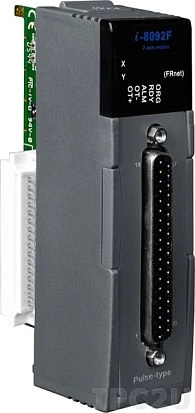

I-8092F

I-8092F

SKU: 03876300

High Speed 2-Axes Motion Control Module

Price on request

Construction

Construction Chassis

Plastic Chassis

Expansion Module

Communication interface

Parallel Bus

Digital Input

Number of channels

2

Signal Type

A/B, CW/CCW

Counter capacity

32 Bit

Digital Output

Channels

2

Signal Type

CW/CCW, Pulse/Dir

Connectors

Connectors

DB37 Male

Operating Conditions

Operating Temperature

-25..75 °C

Dimensions

Net Weight

0.14 kg

Gross Weight

0.19 kg

Construction

Construction Chassis

Plastic Chassis
