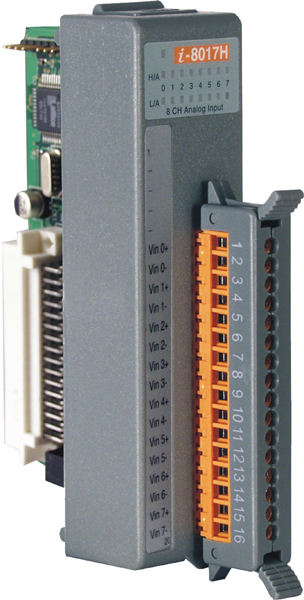

I-8017H-G
ICP DAS
SKU: 06132800
8-ch AI Module, Intra-module Isolation 2500 VDC, Operating Temperature -25..75 C
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Expansion Module
Communication interface
Parallel Bus
Analog Input
Total channels of analog input
8
Number of Bits
14 Bit
Voltage range
+/-1.25 V, +/-2.5 V, +/-5 V, +/-10 V
Current range
-20...+20 mA
Sampling rate
100 Hz
Differential channels
8
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
31 mm
Depth
116 mm
Height
88 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Dimensions
Net Weight
0.15 kg
Gross Weight
0.3 kg
