ICP-DAS i-8K Parallel bus Extension Modules

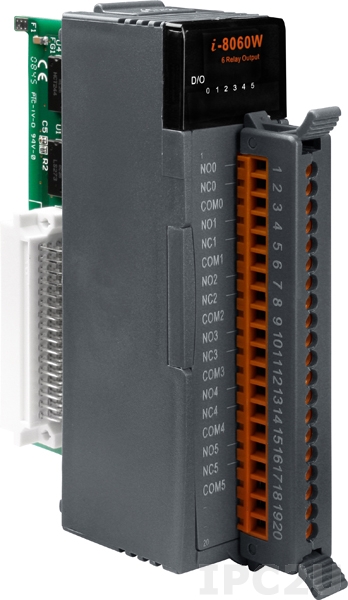

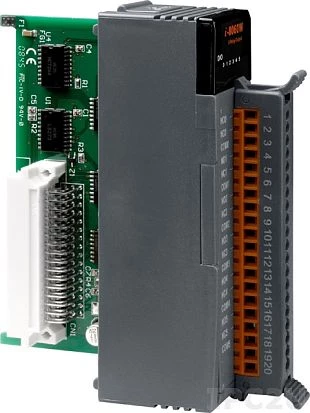

I-8060W

I-8060W

SKU: 05382800

6 Channels Relay Output Module, Parallel Bus, High Profile

Price on request

Construction

Construction Chassis

Plastic Chassis

Expansion Module

Communication interface

Parallel Bus

Digital Output

Total channels of digital output

6

Type

Electromagnitic relay

Relay (Form C)

6

Contact rating of relay (Form C)

2A@30V DC, 0.25A@250V AC, 0.5A@120V AC

Connectors

Connectors

Screw Terminal

Operating Conditions

Operating Temperature

-25..75 °C

Dimensions

Net Weight

0.14 kg

Gross Weight

0.19 kg

Construction

Construction Chassis

Plastic Chassis

Expansion Module

Communication interface

Parallel Bus

Digital Output

Total channels of digital output

6

Type

Electromagnitic relay

Relay (Form C)

6

Contact rating of relay (Form C)

2A@30V DC, 0.25A@250V AC, 0.5A@120V AC

Connectors

Connectors

Screw Terminal

Operating Conditions

Operating Temperature

-25..75 °C

Dimensions

Net Weight

0.14 kg

Gross Weight

0.19 kg

Construction

Construction Chassis

Plastic Chassis

Expansion Module

Communication interface

Parallel Bus

Digital Output

Total channels of digital output

6

Type

Electromagnitic relay

Relay (Form C)

6

Contact rating of relay (Form C)

2A@30V DC, 0.25A@250V AC, 0.5A@120V AC

Connectors

Connectors

Screw Terminal

Operating Conditions

Operating Temperature

-25..75 °C

Dimensions

Net Weight

0.14 kg

Gross Weight

0.19 kg

Construction

Construction Chassis

Plastic Chassis

Expansion Module

Communication interface

Parallel Bus

Digital Output

Total channels of digital output

6

Type

Electromagnitic relay

Relay (Form C)

6

Contact rating of relay (Form C)

2A@30V DC, 0.25A@250V AC, 0.5A@120V AC

Connectors

Connectors

Screw Terminal

Operating Conditions

Operating Temperature

-25..75 °C

Dimensions

Net Weight

0.14 kg

Gross Weight

0.19 kg

Documentation

Datasheet I-8060W Selection Guide

Documentation

Datasheet I-8060W Selection Guide

Documentation

Datasheet I-8060W Selection Guide

Documentation

Datasheet I-8060W Selection Guide
