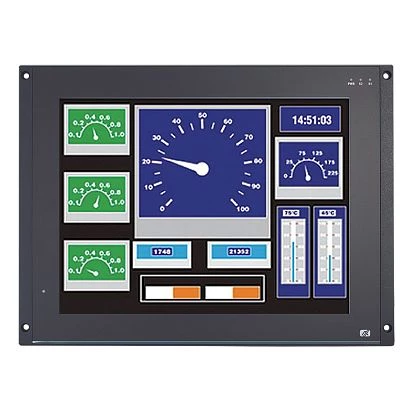

GOT-715S-RA-M

GOT-715S-RA-M

AXIOMTEK
SKU: 09776000
15" XGA Railway Fanless Touch PC, Intel Atom E3845 1.91GHz, resistive touch, 4GB DDR3, 16GB flash, 2xM12 GbE LAN, 2xM12 COM, 1xM12 USB 2.0, CAN, DIO, 2xPCIe Mini, 24-110VDC-in
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP40
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
800 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
2
USB 2.0
2
Industrial Interfaces
CAN Port
1
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
16 GB
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
Audio, DIO (terminal block), DB15 CAN Bus, M12 USB, M12 DC-in, 2x8-pin M12 COM, 4x8-pin M12 LAN
System Power Input
Input Voltage DC
24..110 V
Software
Operating System Compatibility
Windows 7, Windows 8, Windows 8.1, Windows 10
Dimensions and weight
Width
400 mm
Height
300 mm
Depth
61.5 mm
Operating Conditions
Operating Temperature
-25..70 °C
Standards and Certifications
Certifications
CE, FCC Class A
Rolling Stock
EN 50155, IEC 61373, EN 45545, EN 50121-3-2
Dimensions
Net Weight
4.03 kg
Gross Weight
6.43 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP40
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
800 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
2
USB 2.0
2
Industrial Interfaces
CAN Port
1
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
16 GB
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
Audio, DIO (terminal block), DB15 CAN Bus, M12 USB, M12 DC-in, 2x8-pin M12 COM, 4x8-pin M12 LAN
System Power Input
Input Voltage DC
24..110 V
Software
Operating System Compatibility
Windows 7, Windows 8, Windows 8.1, Windows 10
Dimensions and weight
Width
400 mm
Height
300 mm
Depth
61.5 mm
Operating Conditions
Operating Temperature
-25..70 °C
Standards and Certifications
Certifications
CE, FCC Class A
Rolling Stock
EN 50155, IEC 61373, EN 45545, EN 50121-3-2
Dimensions
Net Weight
4.03 kg
Gross Weight
6.43 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP40
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
800 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
2
USB 2.0
2
Industrial Interfaces
CAN Port
1
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
16 GB
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
Audio, DIO (terminal block), DB15 CAN Bus, M12 USB, M12 DC-in, 2x8-pin M12 COM, 4x8-pin M12 LAN
System Power Input
Input Voltage DC
24..110 V
Software
Operating System Compatibility
Windows 7, Windows 8, Windows 8.1, Windows 10
Dimensions and weight
Width
400 mm
Height
300 mm
Depth
61.5 mm
Operating Conditions
Operating Temperature
-25..70 °C
Standards and Certifications
Certifications
CE, FCC Class A
Rolling Stock
EN 50155, IEC 61373, EN 45545, EN 50121-3-2
Dimensions
Net Weight
4.03 kg
Gross Weight
6.43 kg
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Protection Level of Chassis
IP40
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
15 "
Maximum resolution
1024x768 Dots
Brightness
800 Cd/m2
Touch Screen
Touch Screen Type
Resistive
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
2
USB 2.0
2
Industrial Interfaces
CAN Port
1
Drive interfaces
mSATA
1
Installed drive
Drive Type
SSD
Storage Form-Factor
eMMC
1st Storage Capacity
16 GB
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
Audio, DIO (terminal block), DB15 CAN Bus, M12 USB, M12 DC-in, 2x8-pin M12 COM, 4x8-pin M12 LAN
System Power Input
Input Voltage DC
24..110 V
Software
Operating System Compatibility
Windows 7, Windows 8, Windows 8.1, Windows 10
Dimensions and weight
Width
400 mm
Height
300 mm
Depth
61.5 mm
Operating Conditions
Operating Temperature
-25..70 °C
Standards and Certifications
Certifications
CE, FCC Class A
Rolling Stock
EN 50155, IEC 61373, EN 45545, EN 50121-3-2
Dimensions
Net Weight
4.03 kg
Gross Weight
6.43 kg

Documentation
Datasheet GOT-715S
Documentation
Datasheet GOT-715S
Documentation
Datasheet GOT-715S
Documentation
Datasheet GOT-715S
