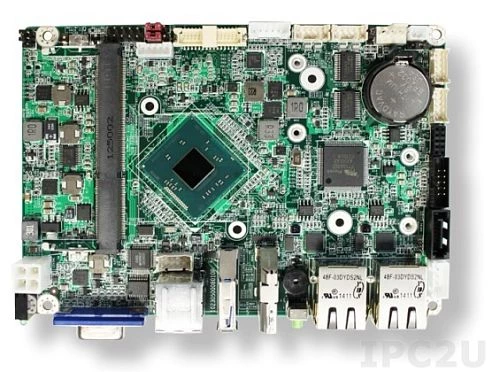

3.5" Intel Atom E3845 1.9GHz CPU Card with DDR3L, LVDS/HDMI/Analog RGB, 2xGigabit LAN, 2xCOM, 4xUSB 2.0, 1xUSB 3.0/2.0, micro SDXC, mSATA, Audio, -20...+70C
EmCORE-i2305-E3845
Arbor
SKU: 06775500
Price on request
Available on order
Available on order
System Architecture
Form Factor
3.5"
Construction
Type
Fanless
CPU
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, HDMI, VGA
Ethernet
Controller Type
Realtek RTL8111 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/485
1
USB Total
5
USB 2.0
4
USB v3.x
1
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Realtek ALC662 HD
Drive interfaces
mSATA
1
Extension Slots
Total
1
Mini-PCIe/Mini Card
1
Additional Functions
Watchdog timer type
Hardware
Connectors
Connectors
DB15 VGA, HDMI, 2xRJ45 Ethernet, 3xUSB
Software
Operating System Compatibility
Windows 7, Windows 8.1, Ubuntu
Dimensions and weight
Width
146 mm
Length
102 mm
Operating Conditions
Operating Temperature
-20..70 °C
Dimensions
Net Weight
0.36 kg
Gross Weight
0.36 kg
