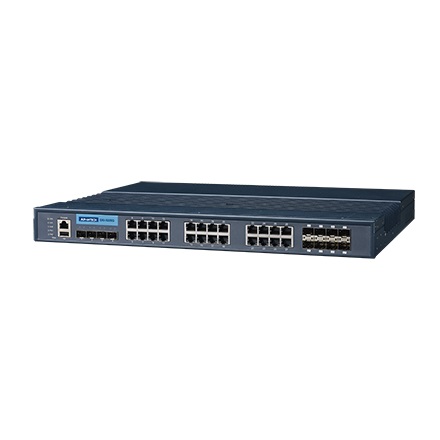

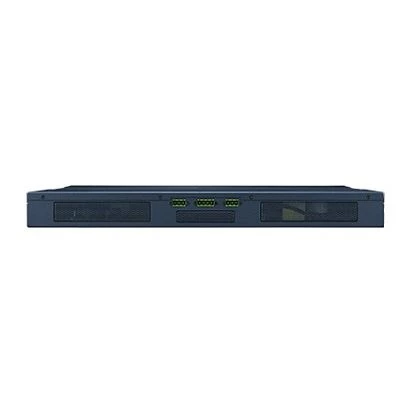

EKI-9228G-8COI-AE
Advantech
SKU: 07978900
ETHERNET DEVICE, IEC61850-3 28GE Managed Ethernet Switch, 16 x Gigabit RJ-45 ports + 4 Gigabit x SFP ports + 8 x Gigabit Combo ports, -40...+85C, 90 ~ 264VAC/88 ~ 370VDC
Price on request
Available
Available
Ethernet
Total Ethernet
28
10/100/1000 Mbit/s
24
Type 10/100/1000 Mbit/s
16xRJ45
SFP 100/1000 Mbit Ports
4
Switch Properties
Switch Level
Layer 2
Supported functions
Rate Limit, Broadcast Storm Protection, Port-Based VLAN
MAC Table Size
16000
Jumbo Frame Size
9 kB
Max. Number of VLANs
4093
Supported Protocols
Managment Protocols
DHCP Server/Client, SNMPv1/v2c/v3, HTTP, Telnet, TCP/IP, QoS, RMON, TFTP, CoS, IGMPv1/v2/v3, DHCP Option 66/67/82, NTP Client, Private MIB
Reservation protocols
MSTP, STP, RSTP
Security Protocols
SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Digital Output
Total channels of digital output
2
Type
Signal Relay
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface
System Power Input
Redundant power input
Yes
Input Voltage DC
88..370 V
Power Supply Reserve input Voltage DC
88..370 V
Input Voltage AC
90..264 V
Power Supply Reserve input Voltage AC
90..264 V
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
19" Rackmount
Protection Level of Chassis
IP30
Height
1 U
Dimensions and weight
Width
442 mm
Depth
352 mm
Height
44 mm
Operating Conditions
Operating Temperature
-40..85 °C
Standards and Certifications
Certifications
CE
EMI
EN 55022 Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8
Power Automation
IEC 61850-3
Safety
UL 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
6.5 kg
Gross Weight
8 kg
