EDS-P510A-8PoE-2GTXSFP-T

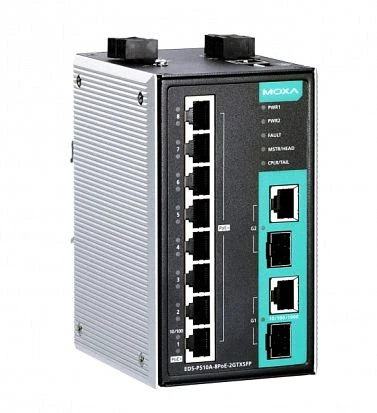

Switch EDS-P510А-8POE-2GTXSFP-T. The industrial managed switch EDS-P510А-8POE-2GTXSFP-T is a multi-task intelligent device for deployment of flexible scalable networks in harsh weather and industrial conditions. It houses 10 communication ports. Eight of them support PoE+ technology for supplying power to terminal devices. Two other ports support the rate of up to 1000 Mbit/s and can be applied for signal redundancy over Turbo Ring protocol or high-speed optic fiber communication at large distances. Moreover, the design features enable uninterruptible device operation at temperatures spanned from -40 to + 75 °C. The switch EDS-P510A-8PoE-2GTXSFP-T: description and features: PoE ports support 802.3af and 802.3at standards and provide up to 36 W of power per each port. There are integrated PoE management functions: connection setup, automatic control, supply power management. The switch conforms to IPv6 standard requirements. Secured remote management over SNMP v1/v2/v3, RMON, SSH, HTTPS protocols ensure confidentiality, integrity and authentication. The device supports the intelligent control functions: IGMP and GMRP (multicast traffic optimization and filtration), VLAN and GVRP (facilitated network planning), QoS (prioritizing), LACP (flexible network connections), DHCP 82 (various IP address policies). The unique Turbo Ring and Turbo Chain redundancy protocols provide minimum recovery time (20 ms) and various alternatives for ring topologies. There are specific functions of software protection and alerting on emergency situations: bandwidth restriction, port mirroring, signal relay output. The metal chassis that rates IP30 protects the electronic components from shocks and vibrations (МЭК-60068/ IEC 60068). There is also a redundant power input, protection against voltage spikes (3 kV), electrostatic discharges, and impulse interference (EN-55022, EN-61000, FCC). Mean time between failures (MTBF standard) is over 80 years. Hence, MOXA’s switch EDS-P510А-8POE-2GTXSFP-T is one of the best model in its class, both in range of features, and protection degree. PoE port will provide power even to energy-demanding devices: weather IP cameras with cleaning and heating, highly-efficient wireless access points. The intelligent management functions provide maximum efficiency and notify you on potential problems earlier than they affect a user. The sophisticated design allows you to use the switch in high temperature, high humidity and explosive hazardous environment.
