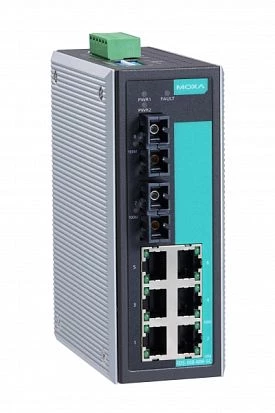

EDS-308-SS-SC

Industrial switch EDS-308-SS-SC represents unmanaged Ethernet switches with 8 ports, of which 2 correspond to 100 Base FX optical standard, have SC slots, and are provided for connection of a single-mode fiber optical cable ensuring data transmission over fiber at the distance of up to 40 km. The device is very compact in size. It can be mounted on a DIN-rail or a wall, features a metal chassis with protection according to IP30 and can be stored in an unmanned room at temperature ranged from -40 to +85 °C. L2 network switch EDS-308-SS-SC: description and features: 10/100 Base TX ports: 6. Slots: RJ-45. 100 Base FX ports: 2. Slots: SC. Single-mode communication distance: 40 km. Wave length: 1310 nm. TX: 0…-5 dBm. RX: -34 dBm. Budget: 29 dB. Dispersion penalty: -3 dBm. A redundant power circuit activates a backup accumulator, if the main power source fails. A relay output promptly alerts engineers on power failures or connection disruptions. The switch supports Turbo Ring redundancy technology for fast network operation recovery. Mean time between failures (MTBF standard) is around 30 years. The price of EDS-308-SS-SC is conditioned by the high assembly quality and opportunity to apply the device in nearly any industrial networks at remote facilities. The optical ports can be used for essential paths of high-speed connection to remote servers, as well as in Turbo Ring topologies. The numerous security certificates on electromagnetic compatibility ensure the device resistance to shocks, vibrations, electrostatic discharges, as well as stable operation under strong impulse interference.
