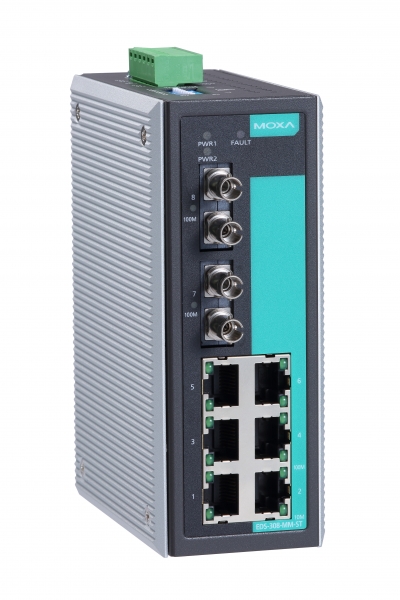

EDS-308-MM-ST

EDS-308-MM-ST

MOXA
SKU: 03146400
Industrial Smart Ethernet Switch with 6 10/100BaseT Ports, 2 Multi Mode 100Base Fx Ports, ST Type Connectors
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100 Mbit/s
8
Type 10/100 Mbit/s
2xST, 6xRJ-45
Fiber
Number of Optical Ports
2xST
Type of Fibre Optic
multi-mode
Switch Properties
Managed
No
Switch Level
Layer 2
Supported functions
Broadcast Storm Protection, Automatic power failure notification, Automatic port failure notification
MAC Table Size
2000
Packet Buffer Size
768 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
System Power Input
Redundant power input
Yes
Input Voltage DC
9..60 V
Power Supply Reserve input Voltage DC
9..60 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
53.6 mm
Depth
105 mm
Height
135 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Marine grade
IEC 60945 4th
Safety
UL 60950-1, UL 508, EN 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.79 kg
Gross Weight
1.03 kg
Ethernet
Total Ethernet
8
10/100 Mbit/s
8
Type 10/100 Mbit/s
2xST, 6xRJ-45
Fiber
Number of Optical Ports
2xST
Type of Fibre Optic
multi-mode
Switch Properties
Managed
No
Switch Level
Layer 2
Supported functions
Broadcast Storm Protection, Automatic power failure notification, Automatic port failure notification
MAC Table Size
2000
Packet Buffer Size
768 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
System Power Input
Redundant power input
Yes
Input Voltage DC
9..60 V
Power Supply Reserve input Voltage DC
9..60 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
53.6 mm
Depth
105 mm
Height
135 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Marine grade
IEC 60945 4th
Safety
UL 60950-1, UL 508, EN 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.79 kg
Gross Weight
1.03 kg
Ethernet
Total Ethernet
8
10/100 Mbit/s
8
Type 10/100 Mbit/s
2xST, 6xRJ-45
Fiber
Number of Optical Ports
2xST
Type of Fibre Optic
multi-mode
Switch Properties
Managed
No
Switch Level
Layer 2
Supported functions
Broadcast Storm Protection, Automatic power failure notification, Automatic port failure notification
MAC Table Size
2000
Packet Buffer Size
768 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
System Power Input
Redundant power input
Yes
Input Voltage DC
9..60 V
Power Supply Reserve input Voltage DC
9..60 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
53.6 mm
Depth
105 mm
Height
135 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Marine grade
IEC 60945 4th
Safety
UL 60950-1, UL 508, EN 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.79 kg
Gross Weight
1.03 kg
Ethernet
Total Ethernet
8
10/100 Mbit/s
8
Type 10/100 Mbit/s
2xST, 6xRJ-45
Fiber
Number of Optical Ports
2xST
Type of Fibre Optic
multi-mode
Switch Properties
Managed
No
Switch Level
Layer 2
Supported functions
Broadcast Storm Protection, Automatic power failure notification, Automatic port failure notification
MAC Table Size
2000
Packet Buffer Size
768 kBit
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
System Power Input
Redundant power input
Yes
Input Voltage DC
9..60 V
Power Supply Reserve input Voltage DC
9..60 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
53.6 mm
Depth
105 mm
Height
135 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Marine grade
IEC 60945 4th
Safety
UL 60950-1, UL 508, EN 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.79 kg
Gross Weight
1.03 kg
Documentation
EDS-308 Datasheet Quick Installation Guide EDS-308 EDS-309
Documentation
EDS-308 Datasheet Quick Installation Guide EDS-308 EDS-309
Documentation
EDS-308 Datasheet Quick Installation Guide EDS-308 EDS-309
Documentation
EDS-308 Datasheet Quick Installation Guide EDS-308 EDS-309
MOXA EDS-308-M-SC Industrial Smart Ethernet Switch with 7 10/100BaseT Ports, 1 Multi Mode (2 km) 100Base Fx Port, SC Type Connector
MOXA EDS-308 Industrial Smart Ethernet Switch with 8 10/100Base-T Ports
MOXA EDS-308-S-SC Industrial Smart Ethernet Switch with 7 10/100BaseT Ports, 1 Single Mode 100Base Fx, SC Type Connector
MOXA EDS-308-MM-SC Industrial Smart Ethernet Switch with 6 10/100BaseT Ports, 2 Multi Mode (2km) 100Base Fx Ports, SC Type Connectors
MOXA EDS-308-SS-SC Industrial Smart Ethernet Switch with 6 10/100BaseT Ports, 2 Single Mode 100Base Fx Ports, SC Type Connectors

Get a Quote

EDS-308-MM-ST
MOXA
SKU: 03146400
EDS-308-MM-ST
EDS-308-MM-ST
