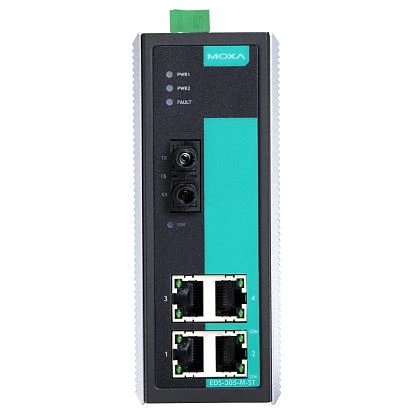

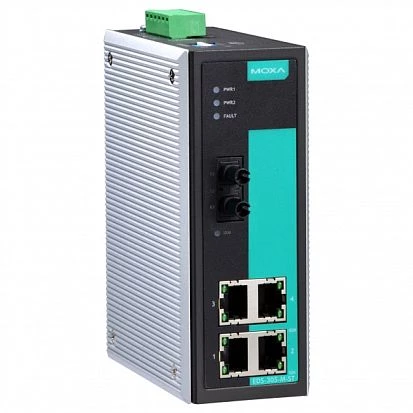

EDS-305-M-ST

EDS-305-M-ST

MOXA
SKU: 03145900
Industrial Smart Ethernet Switch with 4 10/100Base-T Ports, 1 Multi Mode 100Base-FX Port, ST Type Connector
Price on request
Available
Available
Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
1xST, 4xRJ-45
Fiber
Number of Optical Ports
1xST
Type of Fibre Optic
multi-mode
Switch Properties
Managed
No
Switch Level
Layer 2
Supported functions
Broadcast Storm Protection, Automatic power failure notification, Automatic port failure notification
MAC Table Size
1000
Supported Protocols
IEEE Standard
IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
LED / Controls
Setup of Operation Mode
By Switches
System Power Input
Redundant power input
Yes
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
53.6 mm
Depth
105 mm
Height
135 mm
Operating Conditions
Operating Temperature
0..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 Ex nA nC IIC T4 Gc
Marine grade
DNV, GL
Safety
UL 60950-1, UL 508, CSA C22.2 No. 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.79 kg
Gross Weight
0.94 kg
