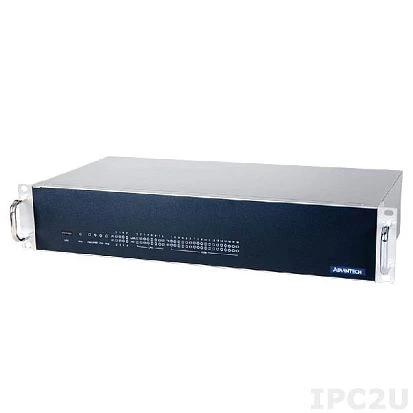

2U Fanless System with Intel Celeron 2980U 1.6GHz, 8Gb DDR3L, 2x2.5" SATA HDD (RAID 0,1), CFast, VGA, DVI, 10xCOM, 8xLAN, 6xUSB, 1xPCIe x1, 1xPCI
ECU-4784-C25SBE
Advantech
SKU: 08486600
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Height
2 U
Type
Fanless
CPU
Processor Installed
Intel Celeron 2980U
Max CPU frequency
1.6 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
8 GB
Maximum Memory
16 GB
Graphic
Graphic Controller
Integrated in CPU
Interfaces
DVI-D, VGA
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
Interfaces
COM Total
10
RS-232
2
RS-232/422/485
8
USB Total
6
USB 2.0
6
Drive interfaces
RAID Levels
1
CFast Slots
1
Storage Cage
2.5" Cage Intenal
2
Extension Slots
Total
2
PCI Express x1
1
PCI
1
LED / Controls
LED
1xHDD LED, Power LED, LAN LED, TX LED, RX LED
Controls
1xOn/Off, 1xReset
Additional Functions
Watchdog timer type
Software
Connectors
Connectors

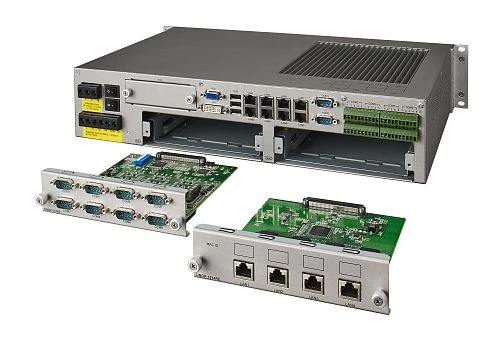

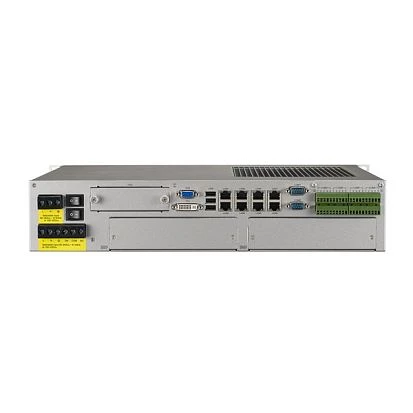

2xDB9, DVI, DB15 VGA, 2xDC input (terminal block), 8xRJ45 Ethernet, 8xCOM (terminal block)
System Power Input
Input Voltage AC
100..240 V
Input Voltage DC
100..240 V
Power Supply
Type of Power Supply
Industrial
Supported Types of Power Supply
Redundant
Software
Operating System Compatibility
Windows Server 2008, Windows 7, Windows Embedded Standard 7, Linux OS, Windows Embedded Standart 8.1
Dimensions and weight
Width
440 mm
Height
88 mm
Depth
280 mm
Operating Conditions
Operating Temperature
-20..70 °C
Vibration
IEC 60068-2-64 (Random 1 Oct./min, 1hr/axis.) CFast: 2 Grms 5 ~ 500 Hz, HDD: 1 Grms 5 ~ 500 Hz
Shock
IEC 68 2-27 CFast: 50 G half sine, 11 ms HDD: 20 G half sine, 11 ms
Standards and Certifications
Certifications
CE, FCC Class A
Power Automation
IEC 61850-3, IEEE 1613
Dimensions
Net Weight
6 kg
Gross Weight
7 kg
