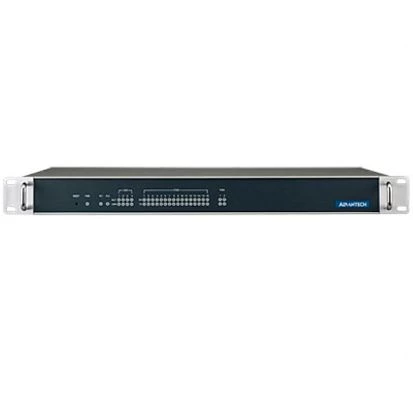

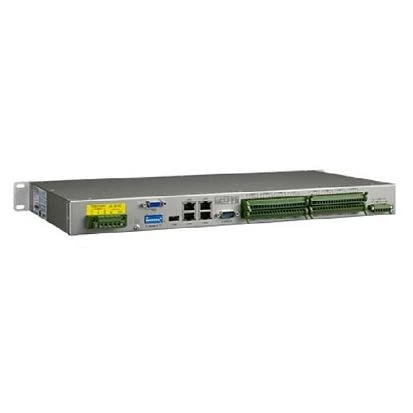

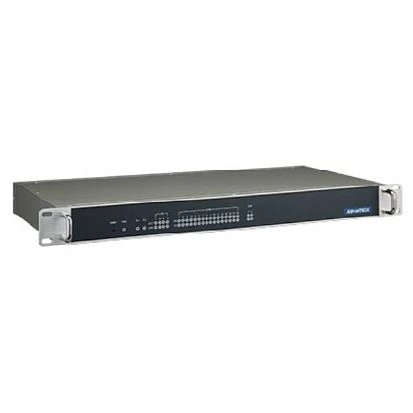

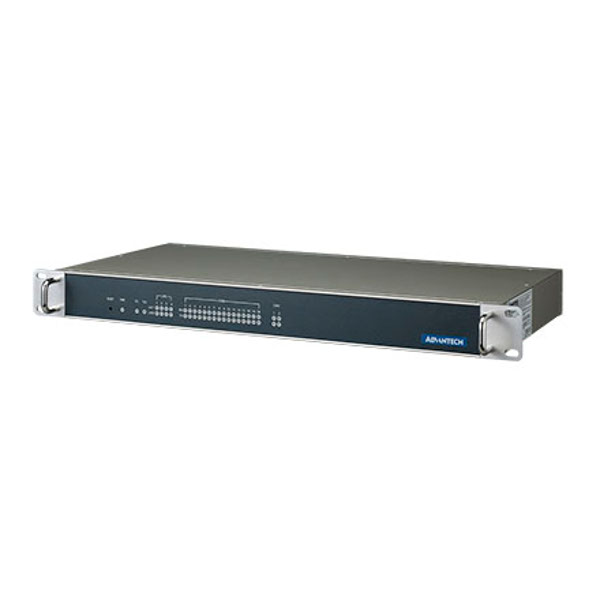

1U Fanless System with ITI Cortex A8 800MHz, 1Gb DDR3L, 16xRS-232/485 isolated, 4xLAN, 2xCAN2.0B, 1xIRIG-B, MicroSD slot, 10...36VDC-in, -40...+70C, RT-Linux OS
ECU-4553-R12SAE
Advantech
SKU: 07961000
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, 19" Rackmount
Height
1 U
Type
Fanless
CPU
Processor Installed
ARM Cortex A8
Max CPU frequency
0.8 GHz
Memory
Form-factor
DDR3
Default on Board Memory
1 GB
Assembly
Fixed on Board
Ethernet
Total Ethernet
4
10/100 Mbit/s
4
Interfaces
COM Total
16
RS-232/485
16
USB Total
1
USB 2.0
1
Installed drive
Storage Form-Factor
MicroSD
1st Storage Capacity
1 GB
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
4xRJ45 Ethernet
System Power Input
Input Voltage AC
100..240 V
Software
Operating System Compatibility
Linux OS
Dimensions and weight
Width
440 mm
Height
44.5 mm
Depth
220 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
IEC 68 2-64 (Random 1 Oct./min, 1hr/axis.) CompactFlash: 2 Grms @ 5 ~ 500 Hz
Shock
IEC 68 2-27 CompactFlash®: 30 G half sine, 11 ms
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
3.5 kg
Gross Weight
4 kg
