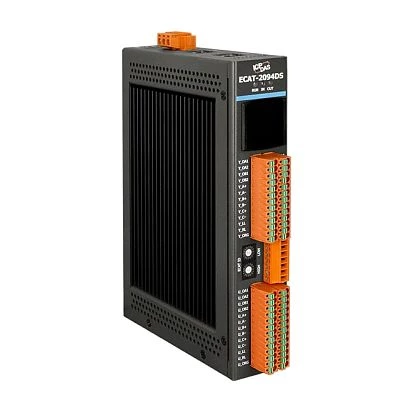

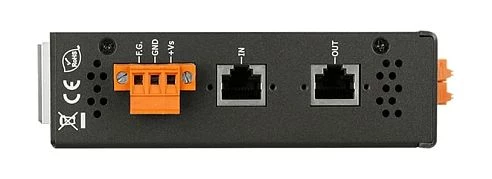

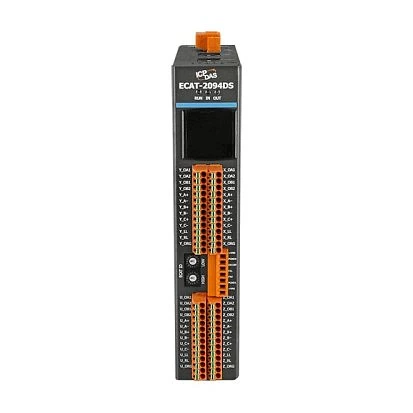

ECAT-2094DS
ICP DAS
SKU: 09770900
EtherCAT slave 4-axis stepper motor controller/ driver (Metal), 20-30VDC
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
EtherCAT slave
Digital Input
Total channels of digital input
12
Type
Wet contact
Level of Logic "0"
0~4 V
Level of Logic "1"
10~24 V
Isolation of Digital Input
3750 V
Number of channels
4
Signal Type
A/B, CW/CCW, Pulse/Dir
Max frequency
1 kHz
Digital Output
Channels
4
Output frequency range
0~8.192 MHz
Output Voltage
9 V
Connectors
Connectors
RJ45 Ethernet
System Power Input
Input Voltage DC
20..30 V
Dimensions and weight
Width
37 mm
Depth
148 mm
Height
229 mm
Operating Conditions
Operating Temperature
-25..40 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.67 kg
Gross Weight
0.87 kg
