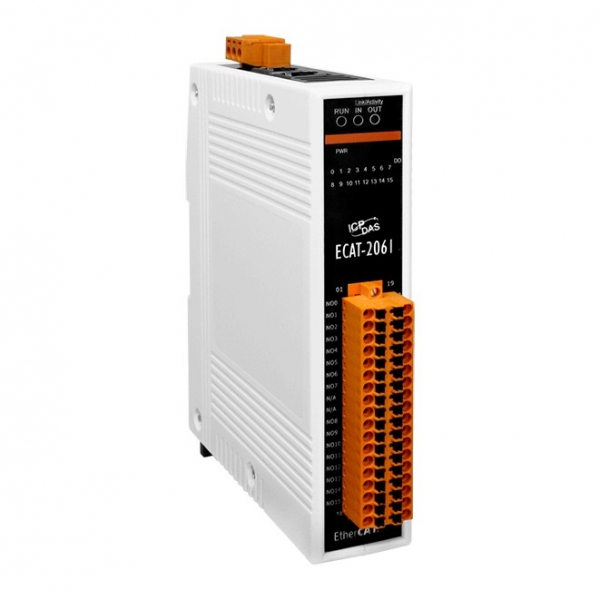

ECAT-2061
ICP DAS
SKU: 07549000
EtherCAT Slave I/O Module with Isolated 16-ch Relay DO 30VDC/250VAC@3A (RoHS), 10-30VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
EtherCAT slave
Digital Output
Total channels of digital output
16
Type
Electromagnitic relay
Contact rating of relay (Form A)
3A@250V AC, 3A@30V DC
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
33 mm
Depth
90 mm
Height
110 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.37 kg
Gross Weight
0.37 kg
