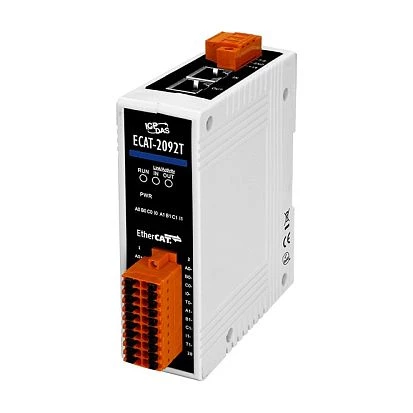

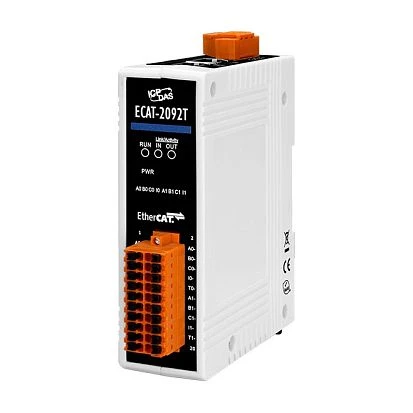

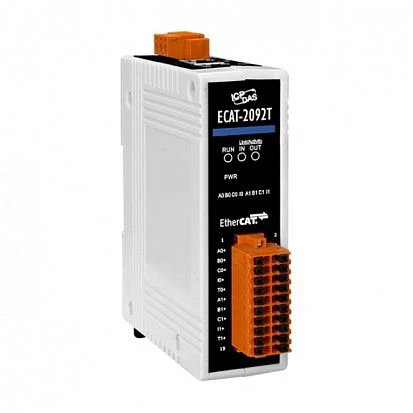

ECAT-2092T

ECAT-2092T

ICP DAS
SKU: 08703400
EtherCAT two-channel incremental encoder counter with compare trigger output
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
EtherCAT slave
Digital Input
Number of channels
2
Signal Type
CW/CCW, Pulse/Dir, AB Phase
Counter capacity
32 Bit
Max frequency
4 kHz
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
20..30 V
Dimensions and weight
Width
33 mm
Depth
127 mm
Height
108 mm
Operating Conditions
Operating Temperature
-25..70 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Gross Weight
0.5 kg
