ECAT-2012H

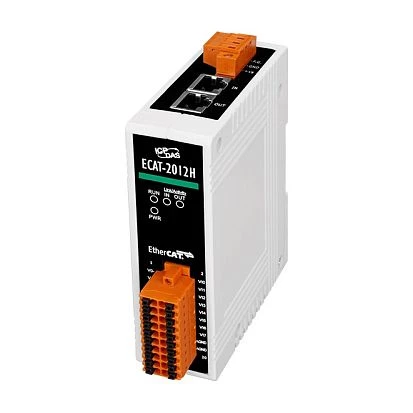

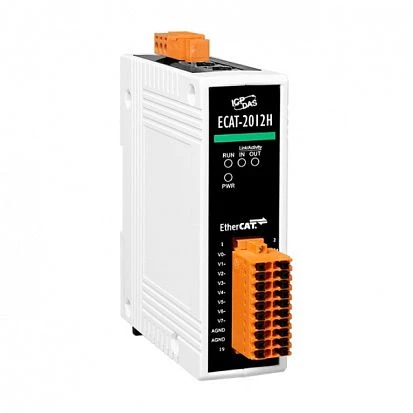

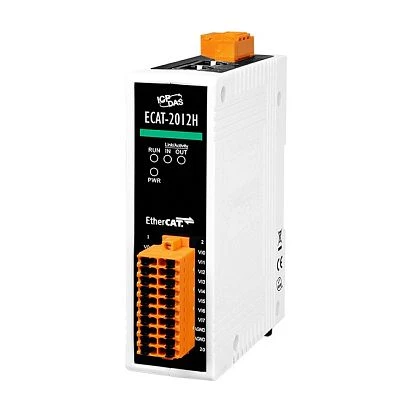

ECAT-2012H

ICP DAS
SKU: 08884600
EtherCAT Slave I/O Module with 16-bit,16-ch/8-ch AI
Price on request
Available
Available

Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Ethernet
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
EtherCAT slave
Analog Input
Total channels of analog input
16
Number of Bits
16 Bit
Voltage range
+/-2.5 V, +/-5 V, +/-10 V, 0...10 V
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Sampling rate
1 Hz
Single-Ended channels
16
Differential channels
8
Connectors
Connectors
2xRJ45, Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Dimensions and weight
Width
90 mm
Depth
33 mm
Height
110 mm
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
Certifications
CE/FCC
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.17 kg
Gross Weight
0.24 kg
